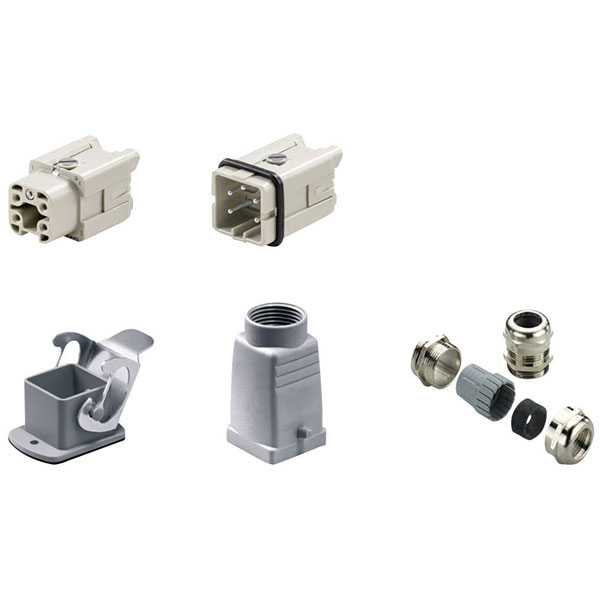

Weidmüller 1802440000, also referred to as the 203803, is featuring a RockStar® Connector set known for its technical and robust design. Engineered with durability in mind, this connector is constructed to withstand demanding environments, making it suitable for a variety of industrial applications. It provides secure and reliable connectivity solutions for systems that require robust electrical interfaces, often used in automation, railway, and manufacturing sectors. The precision in its design ensures consistent and dependable performance in settings where electrical connections are critical.
| Type |
Connector set |
| Accessory |
false |
| Basic material |
diecast aluminium |
| BG |
1 |
| Cable gland |
M 20 |
| Case Material |
Aluminium, die cast |
| Colour (RAL) |
RAL 7035 |
| Conductor cross-section, max. |
2.5mm² |
| Conductor cross-section, min. |
0.5mm² |
| Connection |
Screws |
| Connection type PE |
Screw connection |
| Contains Lead |
No |
| Content |
1 |
| Core cross section (max.) |
2.5mm² |
| Core cross section (min.) |
0.5mm² |
| Design of locking system |
Side-locking clamp on |
| ECLASS 14 |
27-44-02-92 |
| ECLASS 15.0 |
27-44-02-92 |
| EMC housings |
No |
| ETIM 10 |
EC002943 |
| ETIM 8.0 |
EC002943 |
| ETIM 9.0 |
EC002943 |
| GTIN (EAN) |
4032248256907 |
| Height |
116mm |
| Housing main material |
diecast aluminium |
| Installation size |
1 |
| IP Rating |
IP65 |
| Leading Contact (Pe) |
Yes |
| Length |
62mm |
| Limit temperature |
-40 °C ... 100°C |
| Max. torque for main contact |
0.55 Nm |
| Maximum Temperature |
+100°C |
| Min. temperature |
-40°C |
| Min. torque for main contact |
0.5 Nm |
| Net weight |
145g |
| Number of cable entry on top |
1 |
| Number of cable entry sideways |
0 |
| Number of pins |
4 |
| Number of Poles |
4 |
| Packaging |
Bulk |
| Product Type |
Connector set |
| Protection degree |
IP65 |
| Qty. |
1 items |
| Radiation Hardening |
No |
| Rated current (DIN EN 61984) |
16 A |
| Rated voltage |
400V |
| Rated voltage (DIN EN 61984) |
400 V |
| REACH SVHC |
Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3 |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| RoHS Compliant |
No |
| SCIP |
bfb1c983-6f18-4ba4-8907-38aad6aee076 |
| Sealing |
NBR |
| Series |
RockStar® HDC HA |
| Size of cable entries |
M 20 |
| Spare part |
FALSE |
| Surface finish |
Powder coating |
| Termination |
Screw |
| Test current |
16A |
| Thread Size |
M20 |
| Total no. of pins |
4 + PE |
| Type of accessory/spare part |
Other |
| Type of connection |
Screw connection |
| Version |
RockStar® HDC kits-Heavy-duty connectors, Kit, |
| Width |
101mm |
