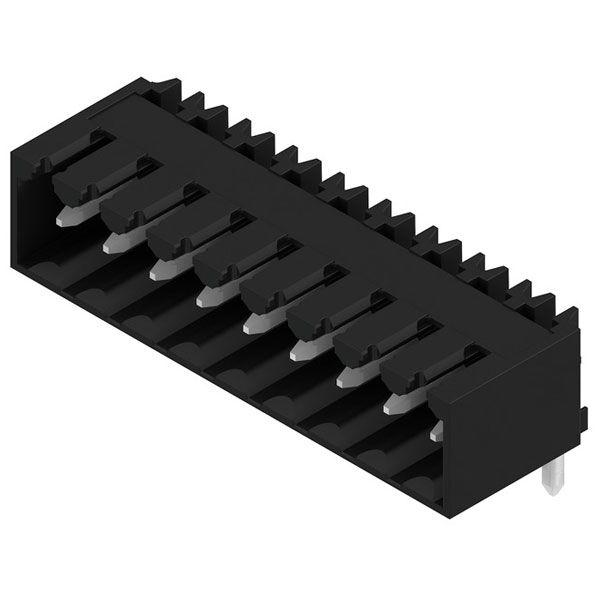

Weidműller 1615460099 Connector 3.50mm Male Unshrouded

Weidmüller manufactures the 1615460099 connector, a 3.50mm male unshrouded type designed for reliable electrical connections. It features robust construction suitable for a variety of industrial applications. Typical uses include integration into control systems and circuit assembly projects.

(Tu=20°C)	(Tu=40°C)
(Tu=40°C)	pollution degree II/2
0470	unplugged
57 106	of-hand-safe unplugged
Angle PCB/contact	0°/180° (horizontal)
Can be coded	Yes
Certificate No. (UR)	E60693
Colour	black
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	= 200
Connector model	Fixed connector
Contact Material	Cu-alloy
Contact surface	tinned
Contact Type	Pin
Depth	11.1mm
Depth (inches)	0.437 inch
ECLASS 14.0	27-46-02-01
ECLASS 15.0	27-46-02-01
ETIM 10.0	EC002637
ETIM 8.0	EC002637
ETIM 9.0	EC002637
GTIN (EAN)	4032248893522
Height	12mm
Height (inches)	0.4724 inch
Height of lowest version	7.5mm
Housing Colour	Black
Inflammability class of insulation material according to UL94	V0
Institute (UR)	UR
Insulating material	PBT
Insulating material group	IIIa
IPC conformity	Conformity: The products are developed, manufactured and delivered according international
L1 in inches	1.102 "
L1 in mm	28.00mm
Layer structure of plug contact	2...4 undefined Ni / 5...8
Layer structure of solder connection	2...4 µm Ni / 5...8 µm Sn
Length pin	4.5
Material insulation body	Thermoplastic
Material of contact surface	Tin
Modular spacing connections	3.5
Modular spacing contacts	3.5
Mounting onto the PCB	THT solder connection
Net weight	2.92g
Notes	•Additional variants on request
Number of plug-in contact rows	1
Number of Poles	9
Number of Rows	1
Number of solder pins per pole	1
Operating Temperature	-50 - 100
Operating temperature, max.	100°C
Operating temperature, min.	-50°C
Outgoing elbow	90°
Overvoltage category	II
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.138 "
Pitch in mm (P)	3.50mm
Plugging force/pole, max.	10 N
Pollution degree	2
pollution degree III/2	class/ pollution degree II/2
Product Carbon Footprint	Cradle to gate
Product data	IEC: 320 V / 17 A
Product family	OMNIMATE Signal - series
Product image	Dimensional drawing
Pulling force/pole, max.	10 N
Qty.	50 items
Rated current (Use group B / CSA)	10 A
Rated current (Use group B / UL 1059) 10 A	Rated current (Use group D / UL 1059) 10 A
Rated current (Use group D / CSA)	10 A
Rated current In	14.5
Rated Surge Voltage	2.5
Rated voltage	160
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group B / UL 1059) 300 V	Rated voltage (Use group D / UL 1059) 300 V
Rated voltage (Use group D / CSA)	300 V
REACH SVHC	No SVHC above 0.1 wt%
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Solder eyelet hole diameter (D)	1.4mm
Solder pin dimensions	d = 1.2 mm, Octagonal
Solder pin dimensions = d tolerance	0 / -0,03mm
Solder pin length (l)	4.5mm
Solder pin length tolerance	+0.1 / -0.3mm
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Temperature range, installation, max.	100°C
Temperature range, installation, min.	-30°C
tested acc. to standard	IEC 60664-1, IEC 61984
Type	PCB Plug-in Connector
Type of banding	Other
Type of connection	Flexible PCB-connector
Type of electric connection	THR connection
Type of fastening	Solder
Type of PCB fastening	Other
UL 94 flammability rating	V-0
UL File Number Search	UL Website
Version	PCB plug-in connector, male header, closed side,
VPE height	50.00mm
VPE length	110.00mm
VPE width	75.00mm
Width	32.9mm
Width (inches)	1.2953 inch
