Weidműller 1390920000 Klippon POK Earthing Plate Polyester Empty Encl

MPN: 1390920000
Brand: Weidmuller
Order Code: 14-7123
Country of Origin: Germany

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
40+	£8.23

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 40

Despatched within 5 working days - 395 in stock

Product Details
Product Range
Data Sheets

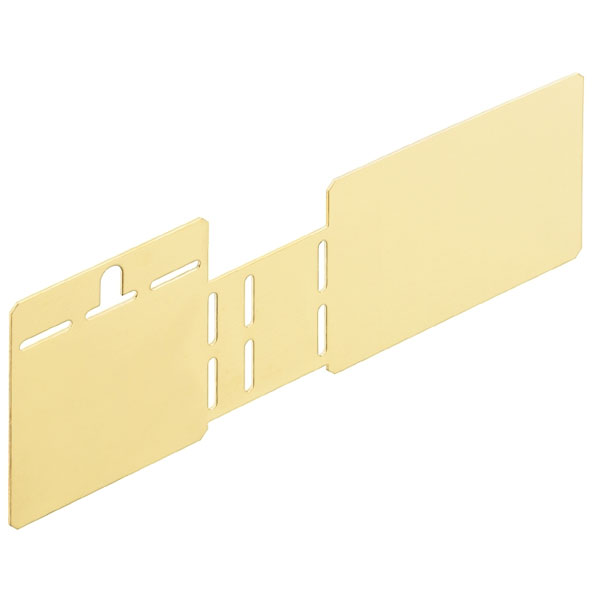

Weidmüller KLIPPON COPL 081106 is a Earthing plate (Housing), Klippon POK (polyester empty enclosure), Miscellaneous, 131 x 33.5 x 0.8 mm, Brass, polished, untreated. Earthing plate in angled form for the use of metal screws in plastic enclosures and in the design of EMC applications.

Type	Erthing plate
•Available in 17 sizes	Type
Basic material	Brass
Depth	0.8
Depth (inches)	0.0315 inch
ECLASS 14	27-18-28-14
ECLASS 15.0	27-18-28-14
ETIM 10	EC002623
ETIM 8.0	EC002623
ETIM 9.0	EC002623
GTIN (EAN)	4050118191066
Height	33.5
Height (inches)	1.3189 inch
Key features of the extensive product range:	Order No.
Material thickness	0.8mm
Model	Other
Net weight	4.75g
Qty.	5 items
REACH SVHC	No SVHC above 0.1 wt%
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Surface finish	polished, untreated
Version	Klippon POK (polyester empty enclosure), Earth-
Wall thickness, max.	0.8mm
Wall thickness, min.	0.8mm
Width	131
Width (inches)	5.1575 inch
