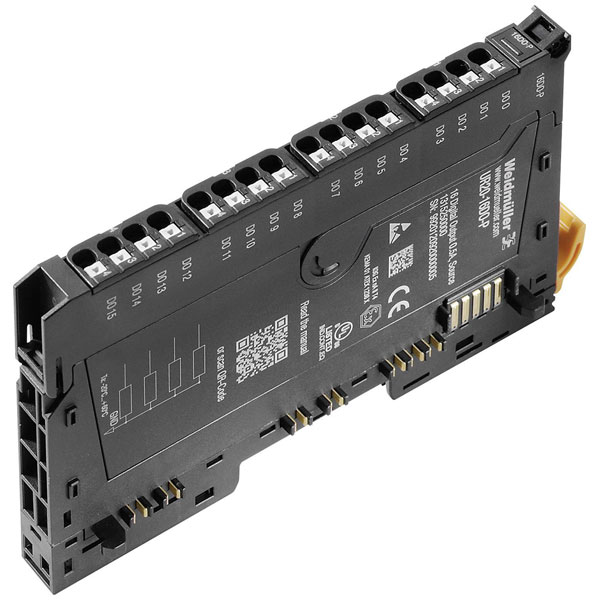

The Weidmüller UR20-16DO-P 1315250000 is a PLC output module designed for 24 V DC operations. It features 16 digital outputs, making it suitable for controlling various automation processes. This module is typically used in industrial settings to manage machinery and production lines effectively.
| Type |
PLC output module |
| Number of Digital Inputs |
0 |
| Number of Digital Outputs |
16 |
| Actuator connection |
Single-conductor |
| Air humidity (operation) |
10% to 95%, non- |
| Air humidity (storage) |
10% to 95%, non- |
| Air humidity (transport) |
10% to 95%, non- |
| Air pressure (operation) |
= 795 hPa (height = 2000 |
| Air pressure (storage) |
1013 hPa (height 0 m) to |
| Air pressure (transport) |
1013 hPa (height 0 m) to |
| Appendant operation agent (Ex ia) |
false |
| Appendant operation agent (Ex ib) |
false |
| Block diagram |
Connection diagram |
| Certificate no. (cULus) |
E141197 |
| Certificate no. (cULusEX) |
E223527 |
| Certified for UL hazardous location class I |
true |
| Certified for UL hazardous location class II |
false |
| Certified for UL hazardous location class III |
false |
| Certified for UL hazardous location division 1 |
false |
| Certified for UL hazardous location division 2 |
true |
| Certified for UL hazardous location group A (acetylene) |
true |
| Certified for UL hazardous location group B (hydrogen) |
true |
| Certified for UL hazardous location group C (ethylene) |
true |
| Certified for UL hazardous location group D (propane) |
true |
| Certified for UL hazardous location group E (metal dusts) |
false |
| Certified for UL hazardous location group F (carbonaceous dusts) |
false |
| Certified for UL hazardous location group G (non-conductive dusts) |
false |
| Connection Type |
PUSH IN |
| Current consumption from IOUT (the |
25 mA + load |
| Current consumption from Isys, typ. |
8mA |
| Degree of protection (IP) |
IP20 |
| Depth |
76 |
| Depth (inches) |
2.9921 inch |
| Diagnostic data |
1 Bit |
| Digital outputs configurable |
true |
| Dim |
(L x W x H) 76 x 11.5 x 120 mm |
| ECLASS 14 |
27-24-26-04 |
| ECLASS 15.0 |
27-24-26-04 |
| ETIM 10 |
EC001599 |
| ETIM 8.0 |
EC001599 |
| ETIM 9.0 |
EC001599 |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
ATEX gas-ex-protection, Cat. 2G |
| Feedback-free |
Yes |
| Field bus protocol |
PROFINET IRT, PROFINET |
| Fitting type (details) |
Top hat rail TS 3 5 |
| Frequency |
1 kHz |
| Front built-in possible |
false |
| Galvanic isolation |
500 V DC between the |
| GTIN (EAN) |
4050118118537 |
| Height |
120mm |
| Height (inches) |
4.7244 inch |
| Individual channel diagnosis |
No |
| Inductive load |
Frequency |
| Inductive load (DC13) |
0.2 Hz |
| Insulation |
500 V (channel to channel) |
| Interface |
u-remote system bus |
| IO link master |
false |
| IP Rating |
IP20 |
| Lamp load (12 W) |
1 kHz |
| Leakage Current |
<0.5mA |
| Length |
76mm |
| Length (inches) |
4.7244 inch |
| m) as per DIN EN 61131-2 |
condensing as per DIN EN |
| Max. ambient temperature |
+60°C |
| Max. response time, high |
100 µs |
| Max. response time, low |
250 µs |
| Min. ambient temperature |
-20°C |
| Misc Attribute 1 |
0.5 A output |
| Misc Attribute 2 |
UR20-16DO-P |
| Mobile communication standard 2G (GSM) |
false |
| Mobile communication standard 3G (UMTS) |
false |
| Mobile communication standard GPRS |
false |
| Module diagnosis |
Yes |
| Module type |
Digital output module |
| Mounting dimension - height |
128mm |
| Mounting rail |
TS 35 |
| Net weight |
83g |
| Number of HW-interfaces industrial Ethernet |
0 |
| Number of HW-interfaces other |
0 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
0 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of HW-interfaces wireless |
0 |
| Number of outputs (max.) |
16 |
| Operating Temperature |
-20 °C...60°C |
| Operating Voltage |
24V DC |
| Output current as per application |
min. |
| Output current per channel, max. |
500mA |
| Output current per module, max. |
8000mA |
| Output voltage, max. |
24 V |
| Performance level according to EN ISO 13849-1 |
None |
| Pollution severity |
2 |
| Possible connection |
Single-conductor |
| Process data |
2 Byte |
| Product Carbon Footprint |
Cradle to gate |
| Protective circuit |
Constant current with thermal switch-off and automatic restart |
| Rack-assembly possible |
false |
| Radio standard Bluetooth |
false |
| Radio standard WLAN 802.11 |
false |
| REACH SVHC |
Lead 7439-92-1, Diboron trioxide 1303-86-2, Lead monoxide 1317-36-8 |
| Resistive load (min. 47 O) |
1 kHz |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
b5ed5bad-cbfe-4ad3-903c-fc3d1093a415 |
| Shock |
15 g over 11 ms, half |
| Short-circuit protection, outputs available |
true |
| Short-circuit-proof |
Yes (thermal cut-out) |
| SIL according to IEC 61508 |
None |
| Simultaneity factor |
min. |
| Storage temperature |
-40 °C ... +85°C |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
false |
| Supply Voltage |
24 V DC +20 %/ -15 %, |
| Supply voltage DC |
24 - 24 |
| Supporting protocol for ASI |
false |
| Supporting protocol for AS-Interface Safety at Work |
false |
| Supporting protocol for CAN |
false |
| Supporting protocol for Data-Highway |
false |
| Supporting protocol for DeviceNet |
false |
| Supporting protocol for DeviceNet Safety |
false |
| Supporting protocol for EtherCAT |
false |
| Supporting protocol for EtherNet/IP |
false |
| Supporting protocol for Foundation Fieldbus |
false |
| Supporting protocol for INTERBUS |
false |
| Supporting protocol for INTERBUS-Safety |
false |
| Supporting protocol for KNX |
false |
| Supporting protocol for LON |
false |
| Supporting protocol for Modbus |
false |
| Supporting protocol for other bus systems |
false |
| Supporting protocol for PROFIBUS |
false |
| Supporting protocol for PROFINET CBA |
false |
| Supporting protocol for PROFINET IO |
false |
| Supporting protocol for PROFIsafe |
false |
| Supporting protocol for SafetyBUS p |
false |
| Supporting protocol for SERCOS |
false |
| Supporting protocol for SUCONET |
false |
| Supporting protocol for TCP/IP |
false |
| Surge voltage category |
II |
| Switching frequency, lamp load |
1 kHz |
| Switch-off energy (inductive) |
<150 mJ / channel |
| System accessory |
false |
| Test Voltage |
500 V |
| Type of connection |
PUSH IN |
| Type of electric connection |
Other |
| UL 94 flammability rating |
V-0 |
| UL File Number Search |
UL Website |
| Usage Category |
DC13 |
| Vibration Resistance |
5 Hz = f = 8.4 Hz: 3.5- |
| Wall mounting/direct mounting |
false |
| Weight |
86g |
| Width |
11.5mm |
| Width (inches) |
0.4528 inch |
| Wire cross-section, finely stranded, max.AWG 16 |
Wire cross-section, finely stranded, min. AWG 26 |
| Wire cross-section, solid, max. |
1.5mm² |
| Wire cross-section, solid, max. (AWG) |
AWG 16 |
| Wire cross-section, solid, min. |
0.14mm² |
| Wire cross-section, solid, min. (AWG) |
AWG 26 |
| With optical interface |
false |
