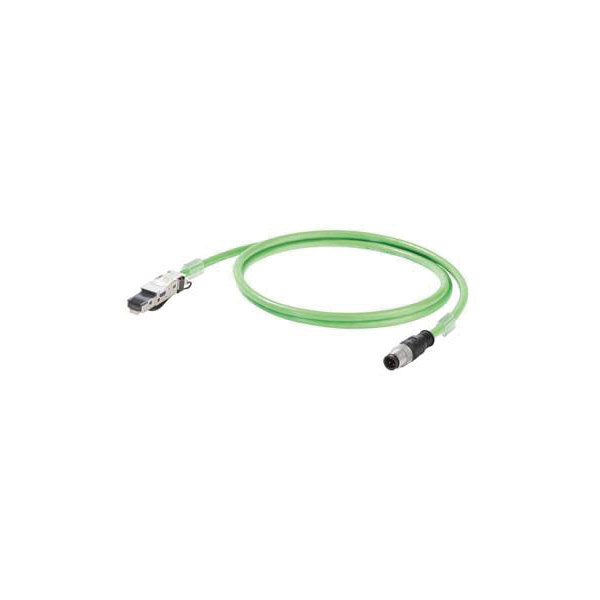

Weidmuller 1044470050 Sensor/Actuator Cable 5m M12-RJ45 Cat 5 IP67 Green

The Weidmüller 1044470050 is a pre-fabricated sensor/actuator data cable featuring a straight plug. This durable cable facilitates reliable data transmission in industrial automation environments. It is ideal for connecting sensors and actuators to control systems.

Connector 1	RJ45
Connector 2	RJ45
Colour	Green
Length	5
Type	Sensor/actuator data cable (pre-fab)
0819) Table 2/A (HD	60603-7-51
Abrasion resistance	very good
Acceleration	4 m/s²
Anti-kink sleeve	None
Arrangement of wire cores	Star-quad
Bending cycles	3 Mio
Cable construction	1x4
Cable Type	SF/UTP
Capacity at 1 kHz	52 nF/km
Category	5
Certificate no. (cULus)	E316369
Characteristic impedance	100 ± 15 O at 1–100
Color	Green
Colour anti-kink sleeve	Black
Colour outer sheath	Green
Colour sequence or wires - wire pairs	white, yellow, blue, orange
Complete shielding	Aluminium foil, Shielding
Connector standard	IEC 61076-2-101, IEC
Cross-section	4*AWG 22/7 - 0.32mm²
Delay skew	40 ns/100m
Diameter of inner sheathing	3.9mm
ECLASS 14	27-06-03-08
ECLASS 15.0	27-06-03-08
ETIM 10	EC002599
ETIM 8.0	EC002599
ETIM 9.0	EC002599
Filler	As central element
Fire propagation	No
Flame retardant	According to IEC/EN 60332-3-24
GTIN (EAN)	4032248776580
Halogen	halogen-free, according to
Halogen free according to EN IEC 60754-1	false
Halogen free according to EN IEC 60754-2	true
Halogen free according to EN IEC 60754-3	false
Installation temperature	-20 °C...60°C
Insulation	PE
Insulation cross-section	1.5mm
Length (inches)	196.8504 inch
Loop resistance	120 O/km
Material connector housing, connection 1	Plastic
Material connector housing, connection 2	Plastic
Material sheath	PUR
Min. bending radius, once only	5 x cable diameter
Min. bending radius, repetitive	7.5 x cable diameter
Misc Attribute	IE-C5DD4UG0050MCSA20-E
Net weight	338g
Number of wires	4
NVP value	66
Oil resistant according to EN IEC 60811-404	true
Operating Temperature	-40 °C...70°C
Operating voltage (UL rating)	600 V
Operating voltage, UL	600 V
Overlap of shielding braid	85 %
Pin assignment	Other
Plug left	M12, IP67, male contact,
Plug right	RJ45, IP20, male contact,
Pulling force	= 150 N
Qty.	1 items
REACH SVHC	Lead 7439-92-1
Resistance differential	3 %
Resistance to oils	in accordance with IEC
Resistance to spread of flame	in accordance with IEC
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
RoHS Compliant	No
SCIP	67cf1078-beca-4687-860b-dc475a6ec24a
Seal Type	Screw-on
Sheath diameter, max.	6.7mm
Sheath diameter, min.	6.3mm
Sheathing colour	green (RAL 6018)
Sheathing material thickness	0.9mm
Shielding	Shielded
Shielding braid thickness	0.13mm
Signal propagation time	5.3 ns/m
Silicone-free	Yes
Speed	180 m/min
Standard designations	2YH(ST)C11Y
Standard, insulating material	DIN EN 50290-2-23 (VDE
Standard, shielding material	DIN EN 13602 Cu-ETP-
Standard, wire material	DIN EN 13602 Cu-ETP-A
Storage temperature	-50 °C...70°C
Strands	7
Test voltage: wire-wire-shield	2000 Veff, 50 Hz, 1 min
Transfer impedance	20 mO/m at 10 MHz
Type of connector connection 1	M12
Type of connector connection 2	RJ45 8(4)
UL File Number Search	UL Website
UV-resistant	Yes
Version	Dragline cable, PROFINET, M12 D-code – IP 67
Wire core insulation thickness	0.38mm
Wire material	Stranded tin-plated copper
Wire/Cable Type	Round
