Weidmüller 2466870000 PROtop SMPSU 120W 24V 5A durable and efficient

Weidmuller
Extended range
Order Code:

08-2569

Brand: Weidmuller MPN: 2466870000
Qty Unit Price (Ex VAT)
1+ £157.84
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 8 days

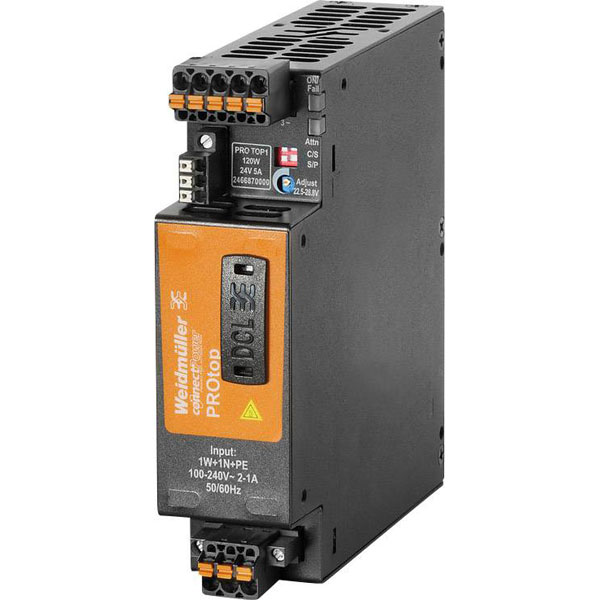

The Weidmüller PRO TOP1 120W 24V 5A SMPSU is a DIN rail-mounted power supply unit capable of delivering 24 V DC at 5 A with a power rating of 120 W. This reliable industrial power supply is well-suited for various applications within automation and control systems. It is designed for easy installation and integration into existing electrical panels or systems.
Type SMPSU
Connection Push-in button
Dim (L x W x H) 125 x 35 x 130 mm
Efficiency 91%
Height 130mm
Input voltage 85 - 277 V/AC, 48 - 410V DC
IP rating IP20
Length 125mm
Manufacturer part # 2466870000
Max. operating temperature (derating) +70°C
Max. output current 5A
Max. temperature +70°C
Min. operating temperature (derating) -25°C
Min. temperature -25°C
Misc Attribute 1 Power supply, switched-mode power supply, 24 V.
Misc Attribute 2 PRO TOP1 120W 24V 5A
MTBF 1000000h
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 5A
Output voltage 24V DC
Output voltage (max.) 28.8V DC
Output voltage (min.) 22.5V DC
Output voltage (nominal) 24V DC
Phases 1
Power 120W
Weight 850g
Width 35mm
