W & P Products 985-10-20-1-50 Square Pin 1.14 mm Compact Design

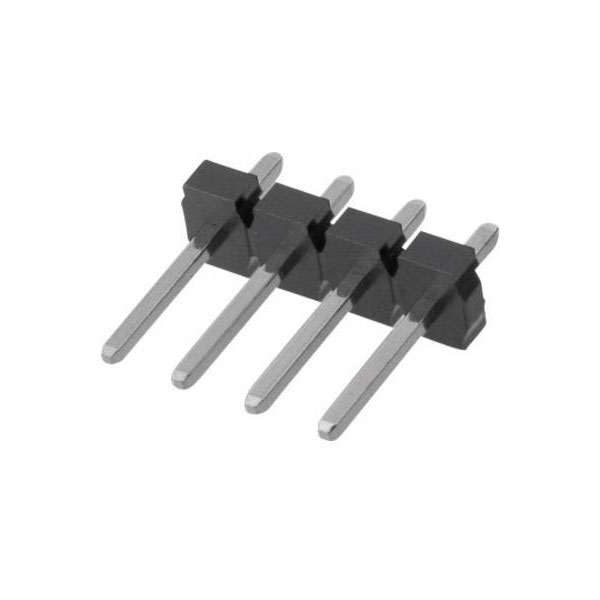

Image Representative of Range

W & P Products 985-10-20-1-50 Square Pin 1.14 mm Compact Design

W & P Products
Order Code:

10-9668

Brand: W & P Products MPN: 985-10-20-1-50 EAN-13: 2050001574107
Qty Unit Price (Ex VAT)
3+ £1.83
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
61 in stock, despatched in 4 working days

W & P Products manufactures the pin strip (standard) model 985-10-20-1-50. This component features robust connectivity and reliable electrical performance. It is typically used in electronic applications for facilitating easy connection and disconnection.
Type Pin strip (standard)
Number of Rows 1
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Pin strip, straight
Contact Material Copper alloy
Contact surface Tin plated
CS 5.08mm
Dim (L x W x H) 101.6 x 19.05 x 6.35 mm
Dimensions L x B x H 101.6 x 6.35 x 22.86 mm
Factory colour Black
Height 6.35mm
Industrial packaging No
Length 101.6mm
Max. temperature +105°C
Min. temperature -40°C
Nominal Current 7.90A
Nominal current - rounded value 7.9A
Nominal Voltage 500V AC
Pin length (PCB) 4.57mm
Pin length (receptacle) 11.94mm
Pin shape Rectangular
Pins per row 20
Separable No
Total number of pins 20
Width 19.05mm
