W & P Products 985-10-08-1-50 Pin Strip 1 Row 8 Square Pins 1.14mm

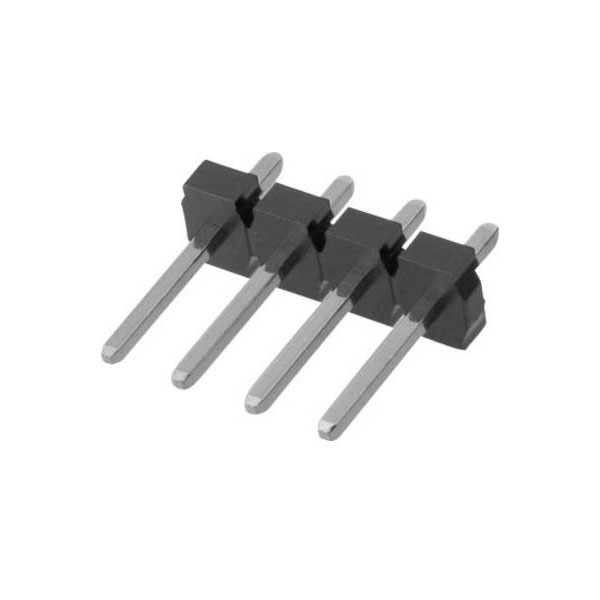

Image Representative of Range

W & P Products 985-10-08-1-50 Pin Strip 1 Row 8 Square Pins 1.14mm

W & P Products
Order Code:

10-9666

Brand: W & P Products MPN: 985-10-08-1-50 EAN-13: 2050001574039
Qty Unit Price (Ex VAT)
5+ £0.815
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
209 in stock, despatched in 4 working days

W & P Products, a reputed manufacturer, offers the pin strip (standard) part number 985-10-08-1-50. This component features a single row with eight pins, ideal for basic electrical connections. Typical applications for this pin strip include electronics circuits and prototype development.
Type Pin strip (standard)
Number of Rows 1
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Pin strip, straight
Contact Material Copper alloy
Contact surface Tin plated
CS 5.08mm
Dim (L x W x H) 40.64 x 19.05 x 6.35 mm
Dimensions L x B x H 40.64 x 6.35 x 22.86 mm
Factory colour Black
Height 6.35mm
Industrial packaging No
Length 40.64mm
Max. temperature +105°C
Min. temperature -40°C
Nominal Current 7.90A
Nominal current - rounded value 7.9A
Nominal Voltage 500V AC
Pin length (PCB) 4.57mm
Pin length (receptacle) 11.94mm
Pin shape Rectangular
Pins per row 8
Separable No
Total number of pins 8
Width 19.05mm
