W & P Products 949-26-020-00 Sandwich Multi-pin Connector 1x20 3A

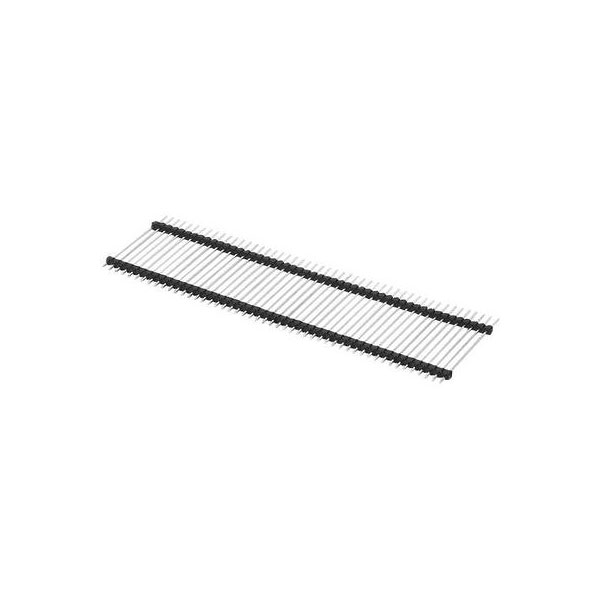

Image Representative of Range

W & P Products 949-26-020-00 Sandwich Multi-pin Connector 1x20 3A

W & P Products
Order Code:

10-9660

Brand: W & P Products MPN: 949-26-020-00 EAN-13: 2050001142603
Qty Unit Price (Ex VAT)
2+ £2.11
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
94 in stock, despatched in 4 working days

The W & P Products 949-26-020-00 connector is a sandwich multi-pin connector with a 1 x 20 pin configuration and a nominal current of 3 A. Manufactured by W & P Products, this standard pin strip is ideal for use in electronic devices requiring reliable power connections. It is typically used in telecommunications and industrial automation applications.
Type Pin strip (standard)
Number of Rows 1
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Pin strip, straight
Contact Material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 50.80 x 45.30 x 2.50 mm
Factory colour Black
Height 2.50mm
Industrial packaging No
Insulation Resistance
> 109Ω
Length 50.80mm
Max. temperature +125°C
Min. temperature -40°C
Misc Attribute 2 Straight
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal Voltage 250V AC
Pin length (PCB) 3.30mm
Pin length (receptacle) 5.70mm
Pin shape Rectangular
Pins 1 x 20
Pins per row 20
Separable No
Temperature Range -55 - +125°C
Total number of pins 20
Width 45.30mm
