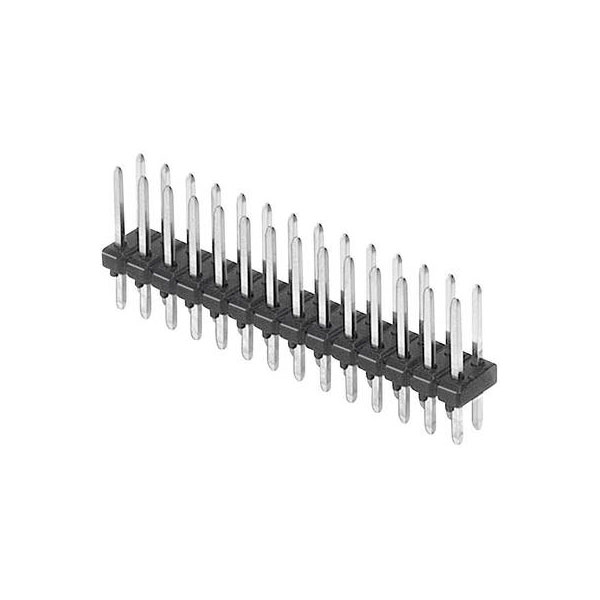

W & P Products 944-13-020-00 Multi Pin Connector 2x10 Pins 3A 0.635mm

The W & P Products 944-13-020-00 is a pin strip standard multi-pin connector with 2 x 10 pins. It has a nominal current rating of 3 A and is manufactured by W & P Products. This connector is typically used in electronic assemblies for precise and reliable connections.

Type	Pin strip (standard)
Number of Positions	20
Number of Rows	2
Case Material	Thermoplastic material
Colour	Black
Connection	Print
Connector orientation	Perpendicular (to the PCB)
Connector Type	Pin strip, straight
Contact Material	Copper alloy
Contact surface	Gold plated
Cross Section	2.54mm
Dimensions	(L x W x H) 25.4 x 12.60 x 5.00 mm
Height	5.00mm
Industrial packaging	No
Insulation Resistance	> 109Ω
Length	25.4mm
Maximum Temperature	+125°C
Min. temperature	-40°C
Misc Attribute 2	Straight
Nominal Current	3A
Nominal Voltage	250V AC
Pin length (PCB)	3.30mm
Pin length (receptacle)	6.80mm
Pin shape	Rectangular
Pins per row	10
Separable	No
Temperature Range	-55 - +125°C
Width	12.60mm
