W & P Products 944-13-006-00 Pin Strip 2x3 Rows For 0.635mm Square Pins

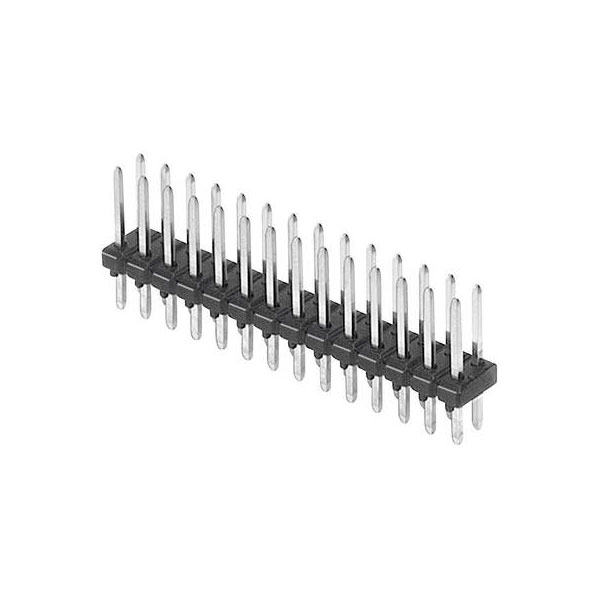

Image Representative of Range

W & P Products 944-13-006-00 Pin Strip 2x3 Rows For 0.635mm Square Pins

W & P Products
Order Code:

10-9642

Brand: W & P Products MPN: 944-13-006-00 EAN-13: 2050001141071
Qty Unit Price (Ex VAT)
25+ £0.179
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,054 in stock, despatched in 4 working days

W & P Products manufactures the Pin strip (standard) model 944-13-006-00, featuring 2 rows of 3 pins each. This component is ideal for simplifying electrical connections in circuit board applications. Its compact design makes it suitable for use in electronic devices requiring efficient space management.
Type Pin strip (standard)
Number of Rows 2
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Pin strip, straight
Contact Material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 12.60 x 7.62 x 5.00 mm
Factory colour Black
Height 5.00mm
Industrial packaging No
Insulation Resistance
> 109Ω
Length 12.60mm
Max. temperature +125°C
Min. temperature -40°C
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal Voltage 250V AC
Nominal voltage (details) 250V AC
Pin length (PCB) 3.30mm
Pin length (receptacle) 6.80mm
Pin shape Rectangular
Pins per row 3
Separable No
Temperature Range -55 - +125°C
Total number of pins 6
Width 7.62mm
