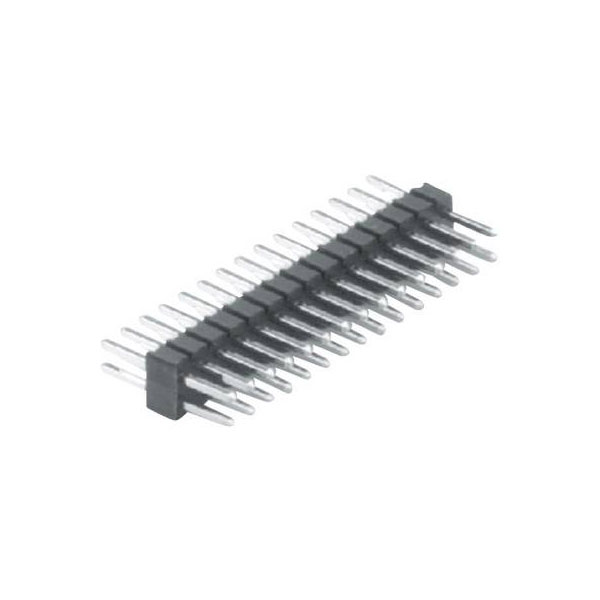

W & P Products 712-1-040-1-10-00 Pin Strip 2 Rows, 20 Pins/Row, 1 Piece

Image Representative of Range

W & P Products 712-1-040-1-10-00 Pin Strip 2 Rows, 20 Pins/Row, 1 Piece

W & P Products
Order Code:

10-9615

Brand: W & P Products MPN: 712-1-040-1-10-00 EAN-13: 2050001574879
Qty Unit Price (Ex VAT)
3+ £1.79
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
100 in stock, despatched in 4 working days

The pin strip, manufactured by W & P Products, features two rows with 20 pins per row. It is ideal for standard electronic applications where reliable connections are required. The part number is 712-1-040-1-10-00 and it's commonly used in circuit design and prototyping.
Type Pin strip (standard)
Number of Rows 2
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Pin strip, straight
Contact Material Copper alloy
Contact surface Gold plated
CS 1.27mm
Dim (L x W x H) 25.40 x 6.30 x 3.40 mm
Dimensions L x B x H 25.4 x 3.4 x 5.3 mm
Factory colour Black
Height 3.40mm
Industrial packaging No
Length 25.40mm
Max. temperature +105°C
Min. temperature -40°C
Nominal Current 1A
Nominal current - rounded value 1A
Nominal Voltage 250V AC
Pin length (PCB) 2.60mm
Pin length (receptacle) 2.70mm
Pin shape Rectangular
Pins per row 20
Separable No
Total number of pins 40
Width 6.30mm
