W & P Products 712-1-016-1-10-00 Pin Strip 2 Rows, 8 Pins per Row

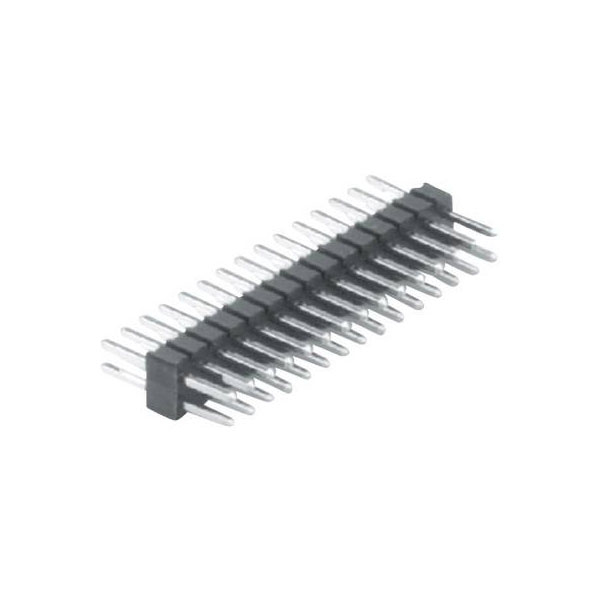

Image Representative of Range

W & P Products 712-1-016-1-10-00 Pin Strip 2 Rows, 8 Pins per Row

W & P Products
Order Code:

10-9614

Brand: W & P Products MPN: 712-1-016-1-10-00 EAN-13: 2050001574701
Qty Unit Price (Ex VAT)
5+ £1.04
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
224 in stock, despatched in 4 working days

W & P Products manufactures the pin strip (standard) 712-1-016-1-10-00 with two rows and eight pins per row. This component is ideal for creating robust electrical connections in circuit boards and electronic assemblies. It is commonly used in various electronic applications requiring reliable pin connections.
Type Pin strip (standard)
Number of Rows 2
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Pin strip, straight
Contact Material Copper alloy
Contact surface Gold plated
CS 1.27mm
Dim (L x W x H) 10.16 x 6.30 x 3.40 mm
Dimensions L x B x H 10.16 x 3.4 x 5.3 mm
Factory colour Black
Height 3.40mm
Industrial packaging No
Length 10.16mm
Max. temperature +105°C
Min. temperature -40°C
Nominal Current 1A
Nominal current - rounded value 1A
Nominal Voltage 250V AC
Pin length (PCB) 2.60mm
Pin length (receptacle) 2.70mm
Pin shape Rectangular
Pins per row 8
Separable No
Total number of pins 16
Width 6.30mm
