W & P Products 605-004-1-1-2-00 SIL Socket 1 Row, 4 Pins, Standard

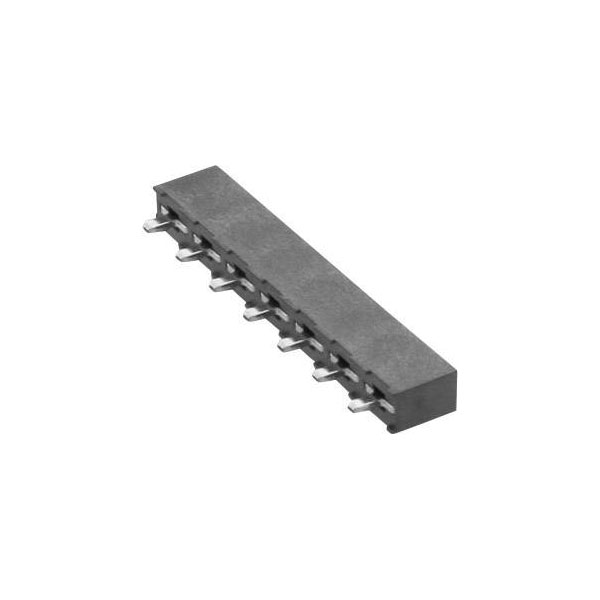

Image Representative of Range

W & P Products 605-004-1-1-2-00 SIL Socket 1 Row, 4 Pins, Standard

W & P Products
Standard range
Order Code:

10-9606

Brand: W & P Products MPN: 605-004-1-1-2-00 EAN-13: 2050001571496
Qty Unit Price (Ex VAT)
1+ £0.776
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
558 in stock, despatched in 4 working days

W & P Products manufactures the SIL socket (standard), part number 605-004-1-1-2-00, with a single row of four pins. This receptacle is designed for printed circuit boards, providing reliable and efficient connections. Ideal for electronic projects and prototyping, it is a crucial component in both consumer electronics and industrial applications.
Case material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector type Power strip, straight
Contact material Copper alloy
Contact surface Gold plated
CS 1.27mm
Dim (L x W x H) 6.70 x 5.42 x 2.20 mm
Dimensions L x B x H 5,42 x 2.2 x 5.8 mm
Factory colour Black
Height 2.20mm
Industrial packaging No
Length 6.70mm
Manufacturer part # 605-004-1-1-2-00
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute 605-004-1-1-2-00
No. of rows 1
Nominal current 1A
Nominal current - rounded value 1A
Nominal voltage 500V AC
Pin length (PCB) 2.40mm
Pins per row 4
RoHS-compliant Yes
Separable No
Total number of pins 4
Type Receptacles (standard)
Width 5.42mm
