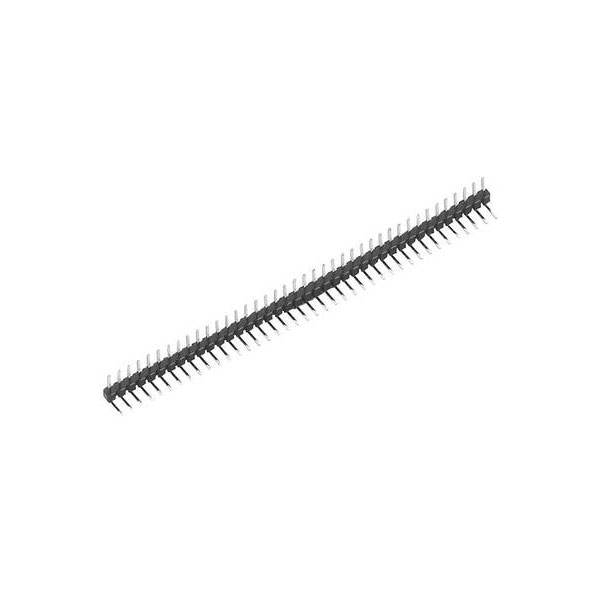

W & P Products 314-100-40-00 Multi Pin Connector 40 Pins 1 A 0.50 mm Pins

The W & P Products 314-100-40-00 is a multi pin connector featuring a 1 x 40 pin strip and supports a nominal current of 1 A. Manufactured by W & P Products, this connector is ideal for applications requiring reliable electrical connections. Typically used in electronics prototyping and circuit board interfaces, it ensures precise connectivity in various electronic assemblies.

Type	Pin strip (standard)
Number of Positions	40
Number of Rows	1
Case Material	Thermoplastic material
Colour	Black
Connection	Print
Connector orientation	Perpendicular (to the PCB)
Connector Type	Pin strip, straight
Contact Material	Copper alloy
Contact surface	Gold plated
Cross Section	2mm
Dimensions	(L x W x H) 80.00 x 8.70 x 2.00 mm
Height	2.00mm
Industrial packaging	No
Insulation Resistance	> 109Ω
Length	80.00mm
Maximum Temperature	+125°C
Min. temperature	-40°C
Misc Attribute 2	Straight
Nominal Current	1A
Nominal Voltage	250V AC
Pin length (PCB)	2.80mm
Pin length (receptacle)	4.40mm
Pin shape	Rectangular
Pins per row	40
Separable	No
Temperature Range	-40 - +105°C
Width	8.70mm
