W & P Products 257-020-1-50-00-6 SIL Socket 1 Row 20 Pins 0.50mm Square Pins

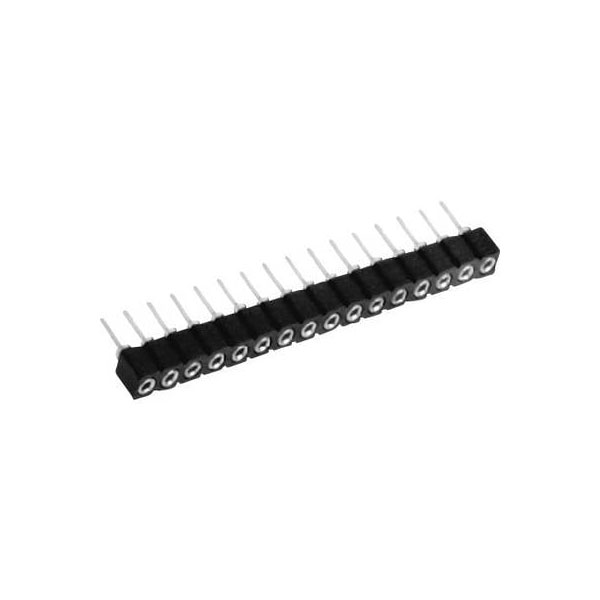

Image Representative of Range

W & P Products 257-020-1-50-00-6 SIL Socket 1 Row 20 Pins 0.50mm Square Pins

W & P Products
Order Code:

10-9591

Brand: W & P Products MPN: 257-020-1-50-00-6 EAN-13: 2050001574541
Qty Unit Price (Ex VAT)
2+ £2.16
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
75 in stock, despatched in 4 working days

W & P Products manufactures the precision SIL socket with one row and 20 pins, identified as part number 257-020-1-50-00-6. This receptacle is used for high-reliability electronic connections in various precision applications. It is typically utilised in circuit boards where precise pin alignment is crucial.
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Power strip, straight
Contact Material Copper alloy
Contact surface Tin plated
CS 2mm
Dim (L x W x H) 40.00 x 7.40 x 2.20 mm
Dimensions L x B x H 40 x 2.2 x 7.4 mm
Factory colour Black
Height 2.20mm
Industrial packaging No
Length 40.00mm
Max. temperature +125°C
Min. temperature -55°C
Nominal Current 3A
Nominal current - rounded value 3A
Nominal Voltage 150V DC
Number of Rows 1
Pin length (PCB) 3.20mm
Pin Ø 0.40mm
Pin shape Circular
Pins per row 20
Separable No
Socket depth 3.50mm
Total number of pins 20
Type Receptacles (precision)
Width 7.40mm
