W & P Products 257-003-1-50-00-6 SIL Socket 1 Row 3 Pins Round/Square

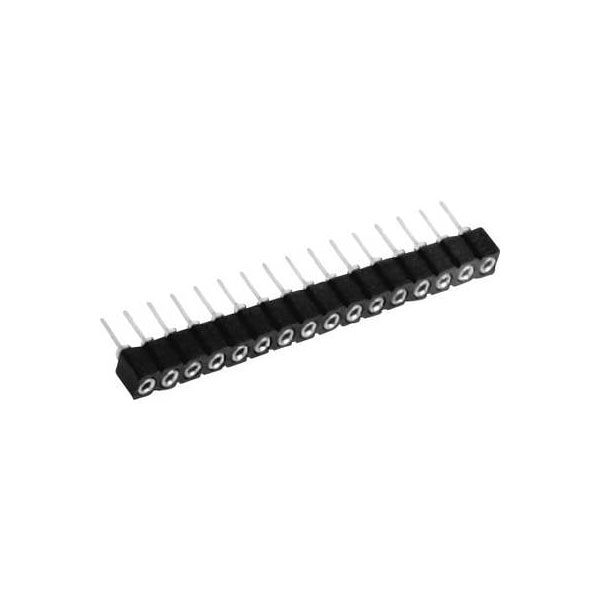

Image Representative of Range

W & P Products 257-003-1-50-00-6 SIL Socket 1 Row 3 Pins Round/Square

W & P Products
Order Code:

10-9583

Brand: W & P Products MPN: 257-003-1-50-00-6 EAN-13: 2050001574510
Qty Unit Price (Ex VAT)
20+ £0.378
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
524 in stock, despatched in 4 working days

W & P Products manufactures the SIL socket (precision) with a single row and three pins per row, part number 257-003-1-50-00-6. This precision receptacle is used in applications requiring reliable electrical connections such as in electronic devices or circuit boards. It is identified by the European Article Number 02050001574510.
No. of Rows 1
No. of Ways 3
Contact Finish Tin plated
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Power strip, straight
CS 2mm
Dim (L x W x H) 7.40 x 6.00 x 2.20 mm
Dimensions L x B x H 6 x 2.2 x 7.4 mm
Factory colour Black
Height 2.20mm
Industrial packaging No
Length 7.40mm
Max. temperature +125°C
Min. temperature -55°C
Nominal Current 3A
Nominal current - rounded value 3A
Nominal Voltage 150V DC
Pin length (PCB) 3.20mm
Pin Ø 0.40mm
Pin shape Circular
Pins per row 3
Separable No
Socket depth 3.50mm
Type Receptacles (precision)
Width 6.00mm
