W & P Products 255-020-1-50-00 Precision Socket Connector 1x20 3A

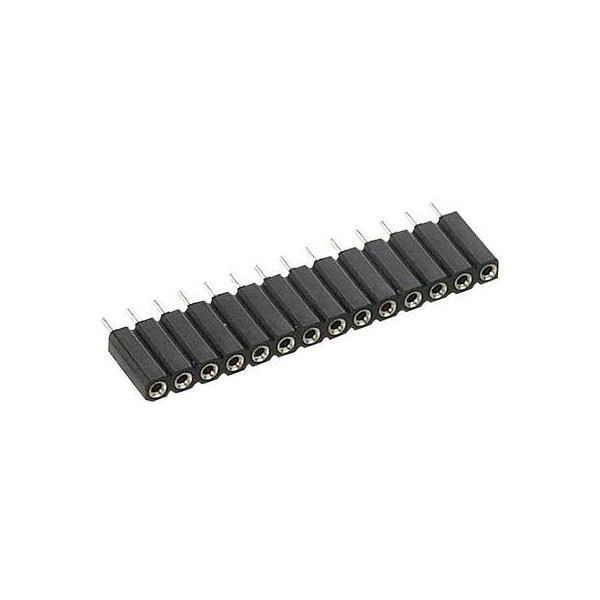

Image Representative of Range

W & P Products 255-020-1-50-00 Precision Socket Connector 1x20 3A

W & P Products
Standard range
Order Code:

10-9580

Brand: W & P Products MPN: 255-020-1-50-00 EAN-13: 2050001130747
Qty Unit Price (Ex VAT)
1+ £2.28
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
987 in stock, despatched in 4 working days

The W & P Products precision socket connector, identified as 02050001130747, features a 1 x 20 pin configuration with a nominal current of 3 A. This receptacle is crafted for high precision and reliable connectivity. It is typically used in electronic devices requiring precise and stable electrical connections.
Case material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector type Power strip, straight
Contact material Copper alloy
Contact surface Tin plated
CS 2.54mm
Dim (L x W x H) 50.8 x 11.5 x 2.54 mm
Factory colour Black
Height 2.54mm
Industrial packaging No
Insulation resistance
> 1000MΩ
Length 50.8mm
Manufacturer part # 255-020-1-50-00
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute 1 255-020-1-50-00
Misc Attribute 2 Straight
No. of rows 1
Nominal current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal voltage 150V DC
Nominal voltage (details) 100 VRMS/150V DC
Pin length (PCB) 3mm
Pin Ø 0.60mm
Pins 1 x 20
Pins per row 20
RoHS-compliant Yes
Separable No
Socket depth 7.1mm
Total number of pins 20
Type Receptacles (precision)
Width 11.5mm
