W & P Products 154-040-1-50-00 Precision Socket Connector 1x40 Pins, 3A

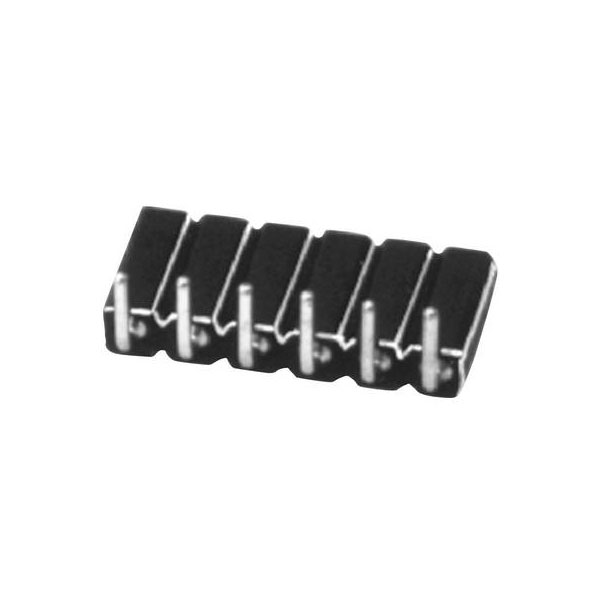

Image Representative of Range

W & P Products 154-040-1-50-00 Precision Socket Connector 1x40 Pins, 3A

W & P Products
Order Code:

10-9568

Brand: W & P Products MPN: 154-040-1-50-00 EAN-13: 2050001143419
Qty Unit Price (Ex VAT)
1+ £4.93
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
90 in stock, despatched in 4 working days

The W & P Products 154-040-1-50-00 Precision Socket Connector is manufactured by W & P Products. It features a 1 x 40 pin configuration with a nominal current capacity of 3 A. Typically used in electronic applications, this precision receptacle facilitates secure and reliable connections.
Case Material Thermoplastic material
Connection Print
Connector orientation Parallel (to the PCB)
Connector Type Power strip, right angle
Contact Material Copper alloy
Contact surface Tin plated
CS 2.54mm
Dim (L x W x H) 101.6 x 8.30 x 5.84 mm
Factory colour Black
Height 5.84mm
Industrial packaging No
Insulation Resistance
> 1010Ω
Length 101.6mm
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute 2 Angled
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal Voltage 150V DC
Number of Rows 1
Pin length (PCB) 3.30mm
Pin length (receptacle) 2.40mm
Pin Ø 0.60mm
Pin shape Circular
Pins 1 x 40
Pins per row 40
Separable No
Socket depth 5.80mm
Temperature Range -55 - +125°C
Total number of pins 40
Type Receptacles (precision)
Width 8.30mm
