W & P Products 154-010-1-50-00 Socket Connector 3A Round/Square Pins

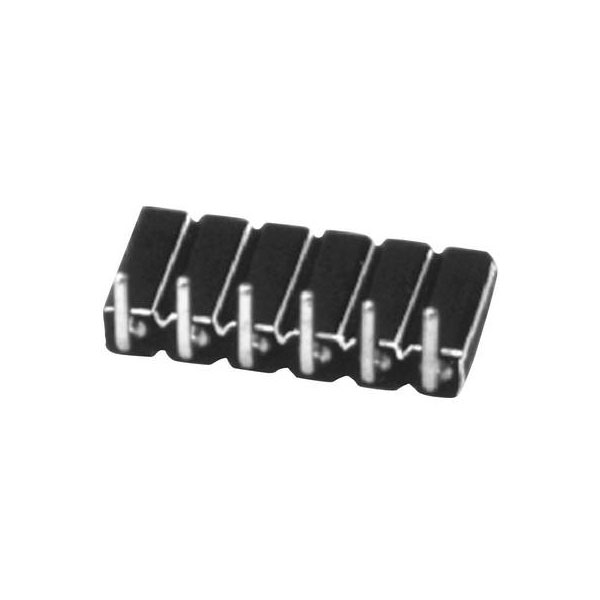

Image Representative of Range

W & P Products 154-010-1-50-00 Socket Connector 3A Round/Square Pins

W & P Products
Standard range
Order Code:

10-9563

Brand: W & P Products MPN: 154-010-1-50-00 EAN-13: 2050001143365
Qty Unit Price (Ex VAT)
1+ £1.44
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
185 in stock, despatched in 4 working days

The W & P Products 154-010-1-50-00 is a precision socket connector with 1 x 10 pins and a nominal current rating of 3 A. Manufactured by W & P Products, this component is designed for receptacles (precision) applications. It is typically used in electronic devices requiring reliable and precise connections.
Case material Thermoplastic material
Connection Print
Connector orientation Parallel (to the PCB)
Connector type Power strip, right angle
Contact material Copper alloy
Contact surface Tin plated
CS 2.54mm
Dim (L x W x H) 25.4 x 8.30 x 5.84 mm
Factory colour Black
Height 5.84mm
Industrial packaging No
Insulation resistance
> 1010Ω
Length 25.4mm
Manufacturer part # 154-010-1-50-00
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute 1 154-010-1-50-00
Misc Attribute 2 Angled
No. of rows 1
Nominal current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal voltage 150V DC
Pin length (PCB) 3.30mm
Pin length (receptacle) 2.40mm
Pin Ø 0.60mm
Pin shape Circular
Pins 1 x 10
Pins per row 10
RoHS-compliant Yes
Separable No
Socket depth 5.80mm
Temperature Range -55 - +125°C
Total number of pins 10
Type Receptacles (precision)
Width 8.30mm
