W & P Products 154-003-1-50-00 Precision Socket Connector 3A 1x3 Pins

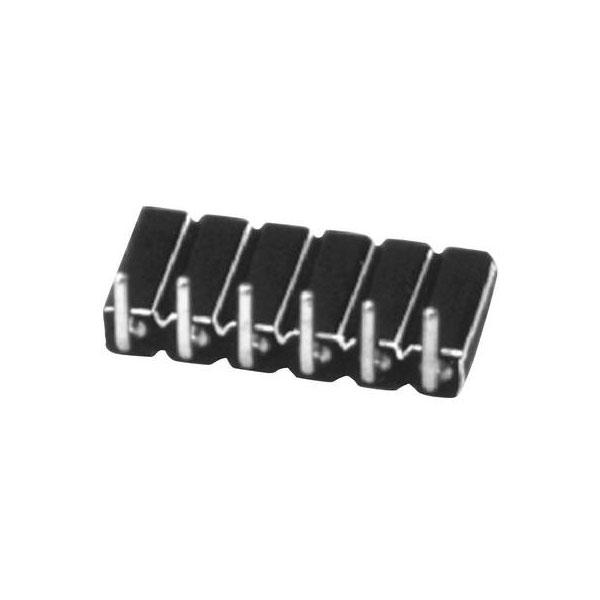

Image Representative of Range

W & P Products 154-003-1-50-00 Precision Socket Connector 3A 1x3 Pins

W & P Products
Order Code:

10-9557

Brand: W & P Products MPN: 154-003-1-50-00 EAN-13: 2050001143334
Qty Unit Price (Ex VAT)
10+ £0.458
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
228 in stock, despatched in 4 working days

The W & P Products 154-003-1-50-00 is a precision socket connector designed to provide reliable electrical connections. Featuring 1 x 3 precision receptacle pins, it supports a nominal current of 3 A. This component is typically used in electronic and industrial applications requiring dependable connectivity.
Case Material Thermoplastic material
Connection Print
Connector orientation Parallel (to the PCB)
Connector Type Power strip, right angle
Contact Material Copper alloy
Contact surface Tin plated
CS 2.54mm
Dim (L x W x H) 8.30 x 7.62 x 5.84 mm
Factory colour Black
Height 5.84mm
Industrial packaging No
Insulation Resistance
> 1010Ω
Length 8.30mm
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute 2 Angled
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal Voltage 150V DC
Number of Rows 1
Pin length (PCB) 3.30mm
Pin length (receptacle) 2.40mm
Pin Ø 0.60mm
Pin shape Circular
Pins 1 x 3
Pins per row 3
Separable No
Socket depth 5.80mm
Temperature Range -55 - +125°C
Total number of pins 3
Type Receptacles (precision)
Width 7.62mm
