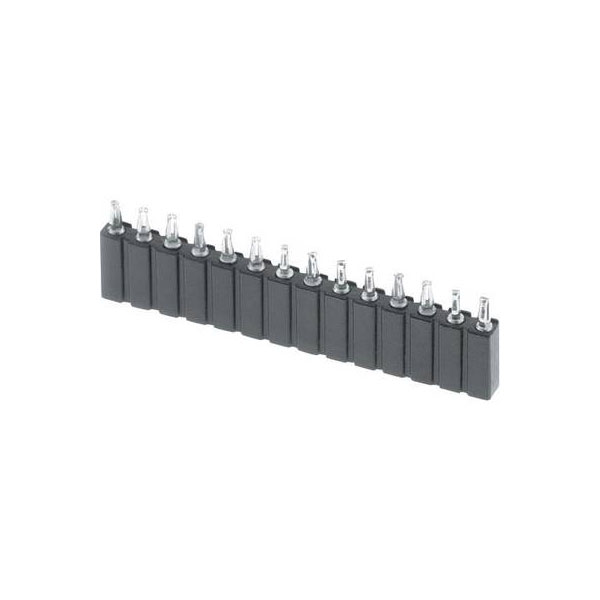

W & P Products 153PF-014-1-50-00 SIL Socket 1 Row 14 Pins Precision

Image Representative of Range

W & P Products 153PF-014-1-50-00 SIL Socket 1 Row 14 Pins Precision

W & P Products
Order Code:

10-9553

Brand: W & P Products MPN: 153PF-014-1-50-00 EAN-13: 2050001574206
Qty Unit Price (Ex VAT)
2+ £2.93
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
46 in stock, despatched in 4 working days

W & P Products manufactures the SIL socket precision receptacle with one row and 14 pins per row. This component is designed for high-precision applications requiring reliable and stable electrical connections. It is typically used in electronic devices and circuit boards where precision and a secure fit are essential.
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Power strip, straight
Contact Material Copper alloy
Contact surface Tin plated
CS 2.54mm
Dim (L x W x H) 35.56 x 9.80 x 2.54 mm
Dimensions L x B x H 35.56 x 2.54 x 9.8 mm
Factory colour Black
Height 2.54mm
Industrial packaging No
Length 35.56mm
Max. temperature +125°C
Min. temperature -55°C
Nominal Current 3A
Nominal current - rounded value 3A
Number of Rows 1
Pin length (PCB) 2.80mm
Pins per row 14
Separable No
Socket depth 6.10mm
Total number of pins 14
Type Receptacles (precision)
Width 9.80mm
