W & P Products 153-008-1-50-00 Precision Socket Connector 1x8 3A

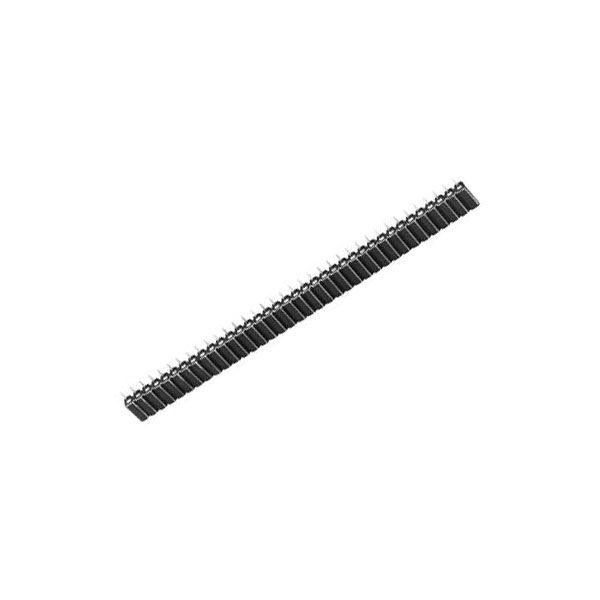

Image Representative of Range

W & P Products 153-008-1-50-00 Precision Socket Connector 1x8 3A

W & P Products
Order Code:

10-9547

Brand: W & P Products MPN: 153-008-1-50-00 EAN-13: 2050001143747
Qty Unit Price (Ex VAT)
10+ £0.696
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
77 in stock, despatched in 4 working days

The precision socket connector, model 153-008-1-50-00, is manufactured by W & P Products. This component features a configuration of 1 x 8 pins and supports a nominal current of 3 A, making it suitable for reliable connection needs. Typical applications include secure receptacle connections in electronic devices where precision and current capacity are essential.
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Power strip, straight
Contact Material Copper alloy
Contact surface Tin plated
CS 2.54mm
Dim (L x W x H) 10.00 x 10.00 x 2.54 mm
Factory colour Black
Height 2.54mm
Industrial packaging No
Insulation Resistance
> 1010Ω
Length 10.00mm
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute 2 Straight
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal Voltage 150V AC
Number of Rows 1
Pin length (PCB) 3mm
Pin length (receptacle) 2.40mm
Pin Ø 0.60mm
Pin shape Circular
Pins 1 x 8
Pins per row 8
Separable No
Socket depth 5.80mm
Temperature Range -55 - +125°C
Total number of pins 8
Type Receptacles (precision)
Width 10.00mm
