W & P Products 141-64-10-60 Pin Connector 64-Pin 2-Row 2.54mm Spacing

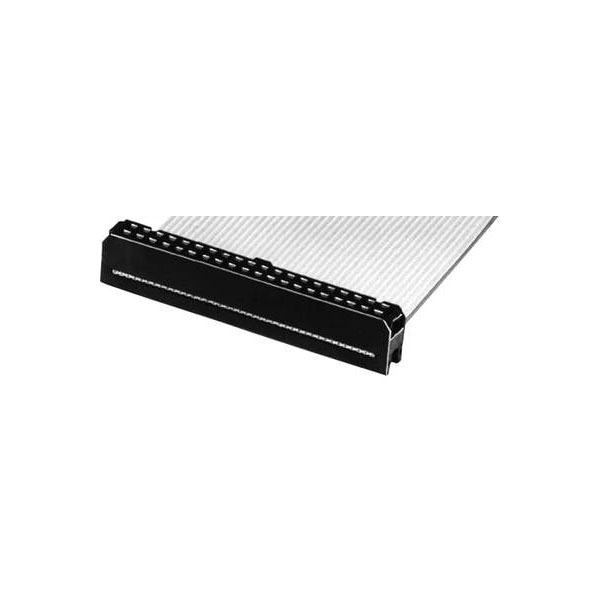

Image Representative of Range

W & P Products 141-64-10-60 Pin Connector 64-Pin 2-Row 2.54mm Spacing

W & P Products
Order Code:

10-9545

Brand: W & P Products MPN: 141-64-10-60 EAN-13: 2050001142528
Qty Unit Price (Ex VAT)
3+ £1.94
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
110 in stock, despatched in 4 working days

The W & P Products 141-64-10-60 pin connector features a contact spacing of 2.54 mm with a total of 64 pins arranged in 2 rows. Manufactured by W & P Products, it is designed for reliable connections in electronic devices and systems. This single piece connector is typically used in circuit boards and other high-density electronic applications.
Type Pin connector
Number of Rows 2
Board contact surface Gold plated
Case Material Thermoplastic material
Connection Cut & Clip
Connector contact surface Gold plated
Connector Type Power strip
Contact Material Copper alloy
CS 2.54mm
Dim (L x W x H) 6 x 85.88 x 13.55 mm
Factory colour Black
Height 13.55mm
Insulation Material Thermoplastic material
Insulation Resistance
> 109Ω
Length 6mm
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute 2 Straight
Nominal Current 1A
Nominal current (details) 3A
Nominal Voltage 250V AC
Pins 2 x 32
Pins per row 32
Temperature Range -40 - +105°C
Total number of pins 64
Width 85.88mm
