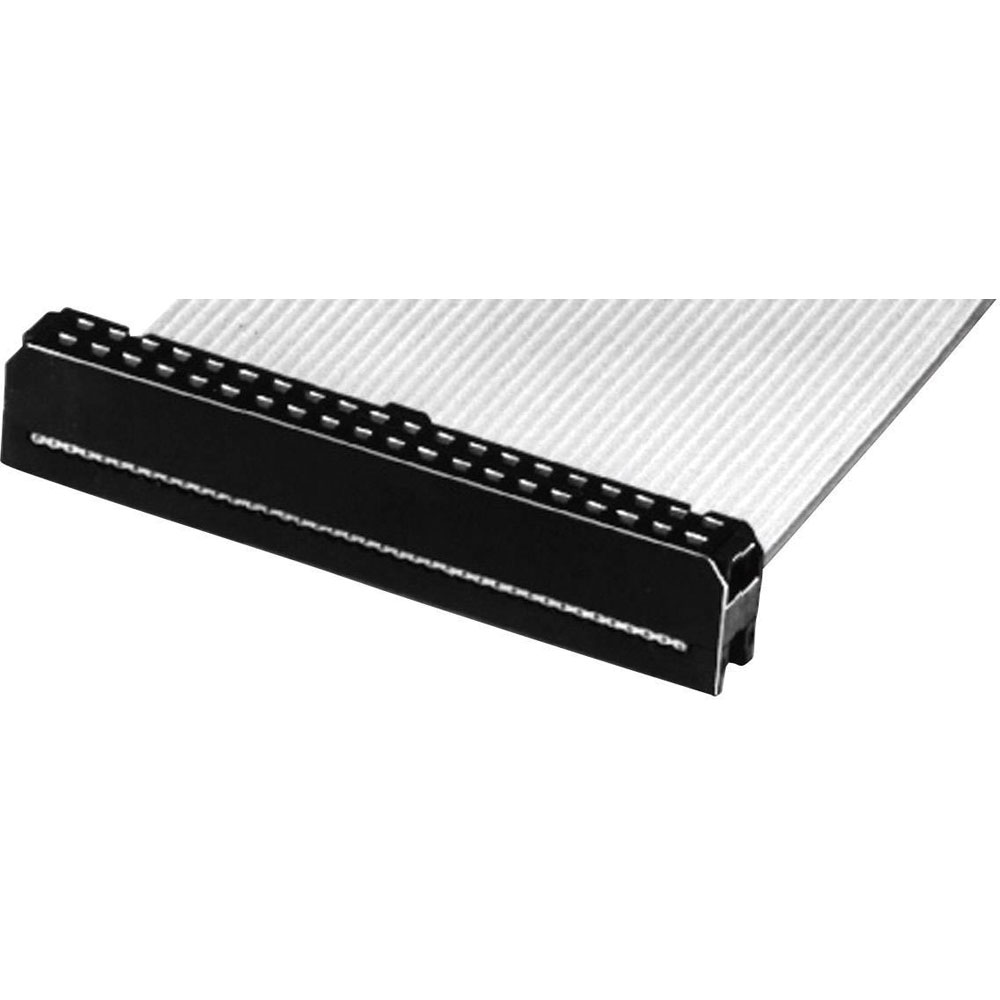

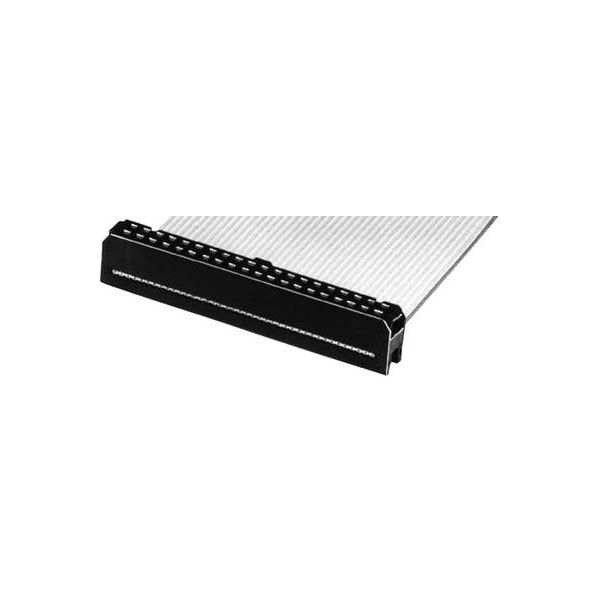

W & P Products 141-40-10-60 Pin Connector 2.54mm Spacing 40 Pins 2 Rows

Image Representative of Range

W & P Products 141-40-10-60 Pin Connector 2.54mm Spacing 40 Pins 2 Rows

W & P Products
Standard range
Order Code:

10-9543

Brand: W & P Products MPN: 141-40-10-60 EAN-13: 2050001143259
Qty Unit Price (Ex VAT)
1+ £0.756
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
147 in stock, despatched in 4 working days

The W & P Products 141-40-10-60 pin connector features a contact spacing of 2.54 mm and a total of 40 pins arranged in two rows. This reliable connector is typically used in electronic applications requiring precise pin alignment and durable connections. Such connectors are often found in circuit boards and various electronic assemblies.
Board contact surface Gold plated
Case material Thermoplastic material
Connection Cut & Clip
Connector contact surface Gold plated
Connector type Power strip
Contact material Copper alloy
CS 2.54mm
Dim (L x W x H) 6 x 55.4 x 13.55 mm
Factory colour Black
Height 13.55mm
Insulation material Thermoplastic material
Insulation resistance
> 109Ω
Length 6mm
Manufacturer part # 141-40-10-60
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute 1 141-40-10-60
Misc Attribute 2 Straight
No. of rows 2
Nominal current 1A
Nominal current (details) 3A
Nominal voltage 250V AC
Pins 2 x 20
Pins per row 20
RoHS-compliant Yes
Temperature range -40 - +105°C
Total number of pins 40
Type Pin connector
Width 55.4mm
