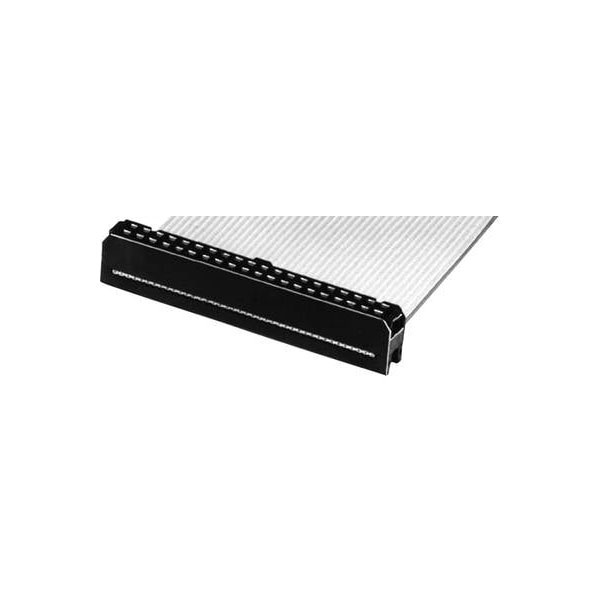

W & P Products 141-26-10-60 Pin Connector 2x13 2.54mm 2 Rows 26 Pins

Image Representative of Range

W & P Products 141-26-10-60 Pin Connector 2x13 2.54mm 2 Rows 26 Pins

W & P Products
Order Code:

10-9541

Brand: W & P Products MPN: 141-26-10-60 EAN-13: 2050001143228
Qty Unit Price (Ex VAT)
10+ £0.636
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,156 available to back orderBack-order availability date - 09/01/2026

W & P Products manufactures the 141-26-10-60 pin connector, featuring a 2.54 mm contact spacing and 26 pins arranged in 2 rows. This connector is ideal for electronic devices requiring compact and reliable connections. Typical applications include circuit boards and other electronic components that need precise interconnection.
Type Pin connector
Number of Positions 26
Number of Rows 2
Board contact surface Gold plated
Case Material Thermoplastic material
Colour Black
Connection Cut & Clip
Connector contact surface Gold plated
Connector Type Power strip
Contact Material Copper alloy
Cross Section 2.54mm
Dimensions (L x W x H) 6 x 37.62 x 13.55 mm
Height 13.55mm
Insulation Material Thermoplastic material
Insulation Resistance
> 109Ω
Length 6mm
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute 2 Straight
Nominal Current 3A
Nominal Voltage 250V AC
Pins per row 13
Temperature Range -40 - +105°C
Width 37.62mm
