W & P Products 141-08-10-60/S Pin Connector 2x4 2.54mm Spacing

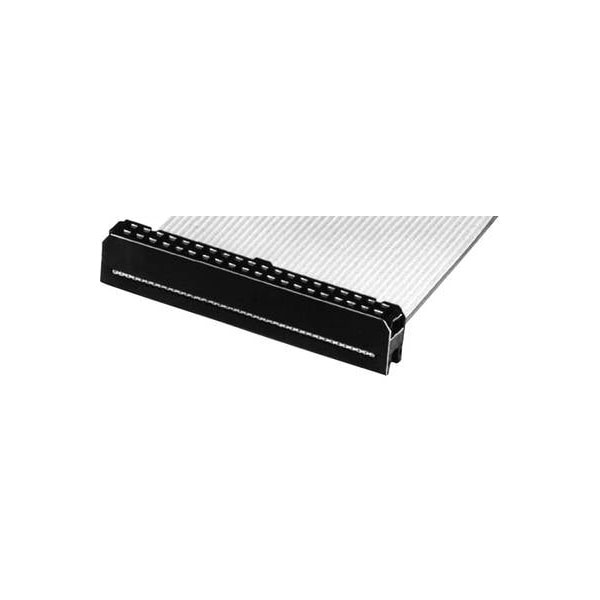

Image Representative of Range

W & P Products 141-08-10-60/S Pin Connector 2x4 2.54mm Spacing

W & P Products
Order Code:

10-9539

Brand: W & P Products MPN: 141-08-10-60/S EAN-13: 2050001143167
Qty Unit Price (Ex VAT)
10+ £0.736
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
195 in stock, despatched in 4 working days

The W & P Products 141-08-10-60/S pin connector features a contact spacing of 2.54 mm and has a total of 8 pins arranged in 2 rows. This connector is typically used in electronic devices where space-efficient and reliable connections are needed. It is suitable for various types of circuit boards, enabling seamless connectivity.
Type Pin connector
Number of Rows 2
Board contact surface Gold plated
Case Material Thermoplastic material
Connection Cut & Clip
Connector contact surface Gold plated
Connector Type Power strip
Contact Material Copper alloy
CS 2.54mm
Dim (L x W x H) 6 x 14.76 x 13.55 mm
Factory colour Black
Height 13.55mm
Insulation Material Thermoplastic material
Insulation Resistance
> 109Ω
Length 6mm
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute 2 Straight
Nominal Current 1A
Nominal current (details) 3A
Nominal Voltage 250V AC
Pins 2 x 4
Pins per row 4
Temperature Range -40 - +105°C
Total number of pins 8
Width 14.76mm
