W & P Products 141-06-10-60/S Pin Connector, 2.54mm, 6 Pins, 2 Rows

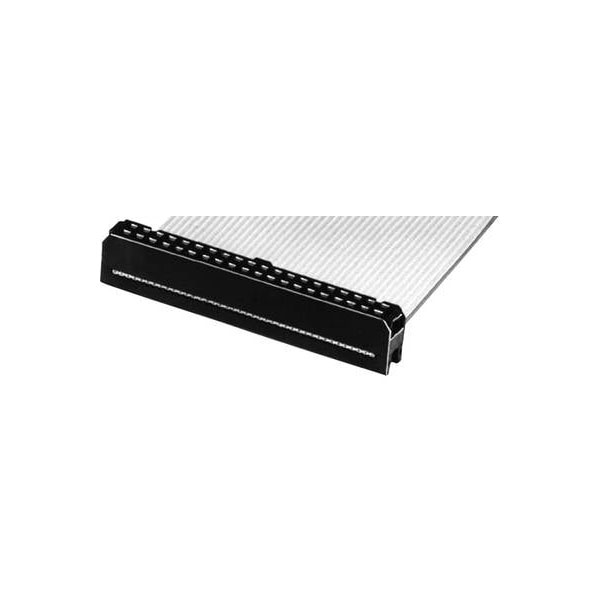

Image Representative of Range

W & P Products 141-06-10-60/S Pin Connector, 2.54mm, 6 Pins, 2 Rows

W & P Products
Order Code:

10-9538

Brand: W & P Products MPN: 141-06-10-60/S EAN-13: 2050001143150
Qty Unit Price (Ex VAT)
10+ £0.617
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
62 in stock, despatched in 4 working days

The W & P Products 141-06-10-60/S pin connector features a 2.54 mm contact spacing, 6 pins, and 2 rows. It is typically used in electronic assemblies where robust and compact connections are required. This single piece is ideal for applications in consumer electronics and industrial equipment.
Type Pin connector
Number of Rows 2
Board contact surface Gold plated
Case Material Thermoplastic material
Connection Cut & Clip
Connector contact surface Gold plated
Connector Type Power strip
Contact Material Copper alloy
CS 2.54mm
Dim (L x W x H) 6 x 13.55 x 12.22 mm
Factory colour Black
Height 12.22mm
Insulation Material Thermoplastic material
Insulation Resistance
> 109Ω
Length 6mm
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute 2 Straight
Nominal Current 1A
Nominal current (details) 3A
Nominal Voltage 250V AC
Pins 2 x 3 mm
Pins per row 3
Temperature Range -40 - +105°C
Total number of pins 6
Width 13.55mm
