W & P Products 137-40-1-00-2 Pin Strip 2.54mm 40 Pins 2 Rows

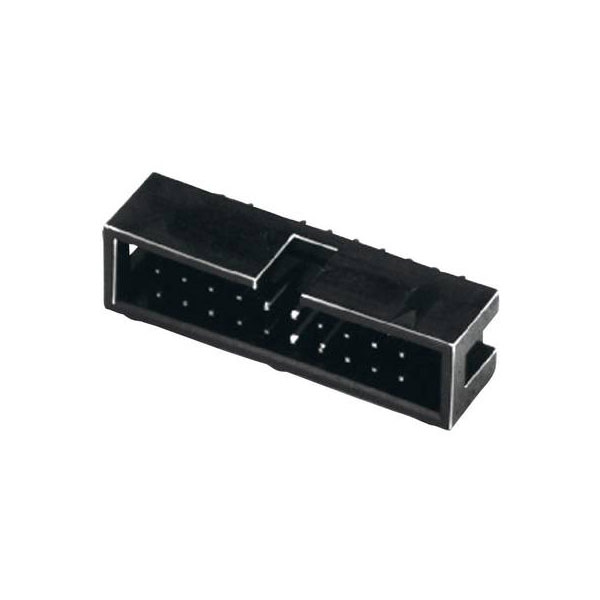

Image Representative of Range

W & P Products 137-40-1-00-2 Pin Strip 2.54mm 40 Pins 2 Rows

W & P Products
Standard range
Order Code:

10-9534

Brand: W & P Products MPN: 137-40-1-00-2 EAN-13: 2050001142979
Qty Unit Price (Ex VAT)
1+ £0.537
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
55 in stock, despatched in 4 working days

The W & P Products 137-40-1-00-2 pin strip features contact spacing of 2.54 mm and consists of 40 pins arranged in 2 rows. This component, typical for connecting electronic circuits, is often used in prototyping and circuit board applications. Manufactured by W & P Products, it ensures reliable electrical connections with precise pin alignment.
Case material Thermoplastic material
Connection Print
Connector type Pin strip, straight
Contact material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 8.85 x 58.42 x 12.33 mm
Factory colour Black
Height 12.33mm
Insulation material Thermoplastic material
Insulation resistance
> 109Ω
Length 8.85mm
Manufacturer part # 137-40-1-00-2
Max. temperature +105°C
Min. temperature -55°C
Misc Attribute 1 137-40-1-00-2
Misc Attribute 2 Straight
No. of rows 2
Nominal current 3A
Nominal current (details) 3A
Nominal voltage 250V AC
Nominal voltage (details) 250V AC
Pins 2 x 20
Pins per row 20
RoHS-compliant Yes
Temperature range -55 - +125°C
Total number of pins 40
Type Pin strip
Width 58.42mm
