W & P Products 137-34-1-00-2 Pin Strip 2.54mm 34 Pins 2 Rows

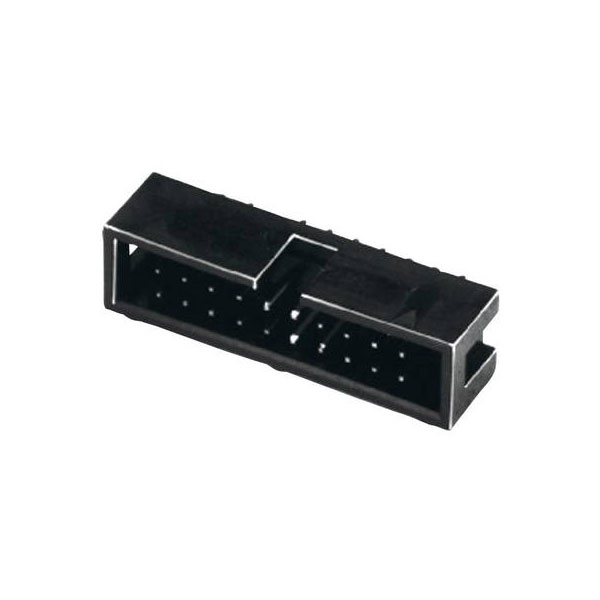

Image Representative of Range

W & P Products 137-34-1-00-2 Pin Strip 2.54mm 34 Pins 2 Rows

W & P Products
Order Code:

10-9533

Brand: W & P Products MPN: 137-34-1-00-2 EAN-13: 2050001142962
Qty Unit Price (Ex VAT)
10+ £0.438
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
215 in stock, despatched in 4 working days

W & P Products manufactures the pin strip 137-34-1-00-2, which features a contact spacing of 2.54 mm, a total of 34 pins, and is organised into two rows. This component is ideal for use in electronic circuit assemblies where compact and reliable connections are necessary. Typical applications include prototyping and custom PCB designs where precision and efficient space usage are required.
Type Pin strip
Number of Rows 2
Case Material Thermoplastic material
Connection Print
Connector Type Pin strip, straight
Contact Material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 8.85 x 50.8 x 12.33 mm
Factory colour Black
Height 12.33mm
Insulation Material Thermoplastic material
Insulation Resistance
> 109Ω
Length 8.85mm
Max. temperature +105°C
Min. temperature -55°C
Misc Attribute 2 Straight
Nominal Current 3A
Nominal current (details) 3A
Nominal Voltage 250V AC
Nominal voltage (details) 250V AC
Pins 2 x 17
Pins per row 17
Temperature Range -55 - +125°C
Total number of pins 34
Width 50.8mm
