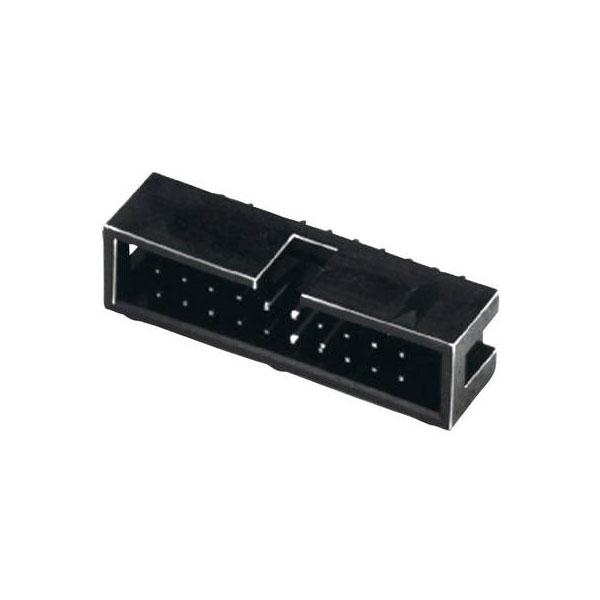

W & P Products 137-26-1-00-2 Pin Strip 2.54mm Spacing, 26 Pins, 2 Rows

Image Representative of Range

W & P Products 137-26-1-00-2 Pin Strip 2.54mm Spacing, 26 Pins, 2 Rows

W & P Products
Order Code:

10-9531

Brand: W & P Products MPN: 137-26-1-00-2 EAN-13: 2050001142948
Qty Unit Price (Ex VAT)
10+ £0.406
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
4 in stock, despatched in 4 working days

The W & P Products pin strip, model 137-26-1-00-2, features a contact spacing of 2.54 mm and consists of 26 pins arranged in 2 rows. This component is typically used for electrical connections on printed circuit boards, offering reliable and efficient contact points. The design is particularly suited for applications in electronic devices where compact and precise pin arrangements are required.
Type Pin strip
Number of Rows 2
Case Material Thermoplastic material
Connection Print
Connector Type Pin strip, straight
Contact Material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 8.85 x 40.64 x 12.33 mm
Factory colour Black
Height 12.33mm
Insulation Material Thermoplastic material
Insulation Resistance
> 109Ω
Length 8.85mm
Max. temperature +105°C
Min. temperature -55°C
Misc Attribute 2 Straight
Nominal Current 3A
Nominal current (details) 3A
Nominal Voltage 250V AC
Nominal voltage (details) 250V AC
Pins 2 x 13
Pins per row 13
Temperature Range -55 - +125°C
Total number of pins 26
Width 40.64mm
