W & P Products 137-16-1-00-2 Pin Strip 2.54mm Contact 16 Pins 2 Rows

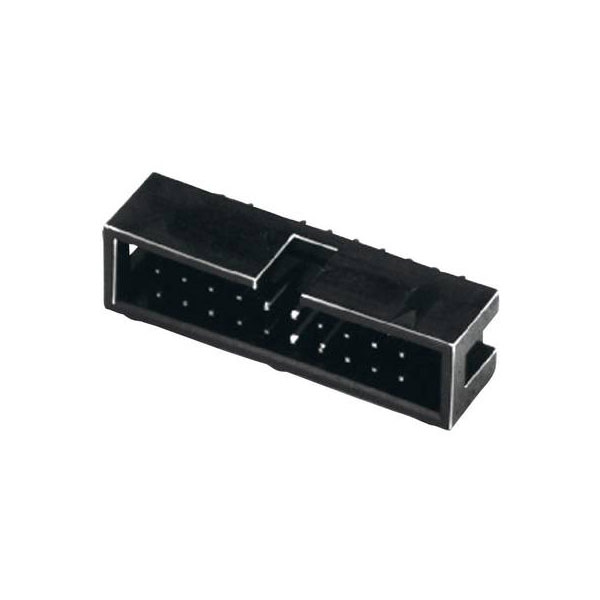

Image Representative of Range

W & P Products 137-16-1-00-2 Pin Strip 2.54mm Contact 16 Pins 2 Rows

W & P Products
Order Code:

10-9528

Brand: W & P Products MPN: 137-16-1-00-2 EAN-13: 2050001142917
Qty Unit Price (Ex VAT)
20+ £0.259
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
177 in stock, despatched in 4 working days

W & P Products manufactures the 137-16-1-00-2 pin strip with a contact spacing of 2.54 mm. It has a total of 16 pins arranged in 2 rows and is often used in electronic circuit board applications. This component is ideal for connecting various electronic parts due to its reliable pin configuration.
Type Pin strip
Number of Rows 2
Case Material Thermoplastic material
Connection Print
Connector Type Pin strip, straight
Contact Material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 8.85 x 27.94 x 12.33 mm
Factory colour Black
Height 12.33mm
Insulation Material Thermoplastic material
Insulation Resistance
> 109Ω
Length 8.85mm
Max. temperature +105°C
Min. temperature -55°C
Misc Attribute 2 Straight
Nominal Current 3A
Nominal current (details) 3A
Nominal Voltage 250V AC
Nominal voltage (details) 250V AC
Pins 2 x 8 mm
Pins per row 8
Temperature Range -55 - +125°C
Total number of pins 16
Width 27.94mm
