W & P Products 137-10-1-00-2 Pin Strip 2.54mm Spacing 10-Pin 2-Row

Image Representative of Range

W & P Products 137-10-1-00-2 Pin Strip 2.54mm Spacing 10-Pin 2-Row

W & P Products
Standard range
Order Code:

10-9525

Brand: W & P Products MPN: 137-10-1-00-2 EAN-13: 2050001143662
Qty Unit Price (Ex VAT)
1+ £0.199
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
652 in stock, despatched in 4 working days

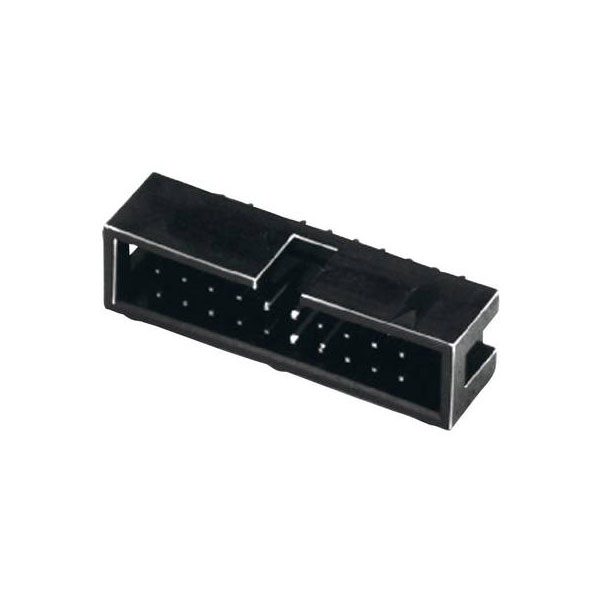

The W & P Products 137-10-1-00-2 pin strip is a robust connector component with 10 pins arranged in 2 rows and features a contact spacing of 2.54 mm. As a versatile element in electronic assemblies, it is suitable for use in circuit board connections. Typical applications include integrated circuits and signal transmission interfaces.
Case material Thermoplastic material
Connection Print
Connector type Pin strip, straight
Contact material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 8.85 x 20.32 x 12.33 mm
Factory colour Black
Height 12.33mm
Insulation material Thermoplastic material
Insulation resistance
> 109Ω
Length 8.85mm
Manufacturer part # 137-10-1-00-2
Max. temperature +105°C
Min. temperature -55°C
Misc Attribute 1 137-10-1-00-2
Misc Attribute 2 Straight
No. of rows 2
Nominal current 3A
Nominal current (details) 3A
Nominal voltage 250V AC
Nominal voltage (details) 250V AC
Pins 2 x 5
Pins per row 5
RoHS-compliant Yes
Temperature range -55 - +125°C
Total number of pins 10
Type Pin strip
Width 20.32mm
