W & P Products 137-06-1-00-2 Pin Strip 6 Pins 2.54mm Dual Row 1pc

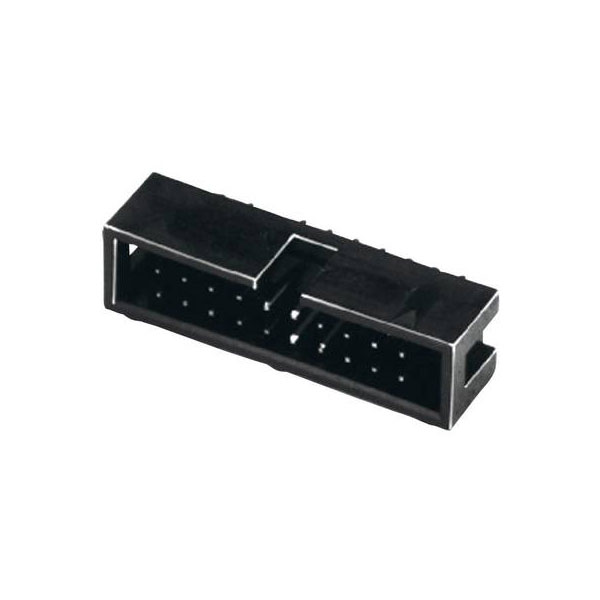

Image Representative of Range

W & P Products 137-06-1-00-2 Pin Strip 6 Pins 2.54mm Dual Row 1pc

W & P Products
Order Code:

10-9522

Brand: W & P Products MPN: 137-06-1-00-2 EAN-13: 2050001143648
Qty Unit Price (Ex VAT)
20+ £0.259
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,456 in stock, despatched in 4 working days

W & P Products manufactures the 137-06-1-00-2 pin strip, which features a contact spacing of 2.54 mm, a total of 6 pins, and 2 rows. This pin strip is typically used in electronic circuit boards for establishing connections. It is ideal for prototyping and assembling custom connectors in various electronics projects.
Type Pin strip
Number of Rows 2
Case Material Thermoplastic material
Connection Print
Connector Type Pin strip, straight
Contact Material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 8.85 x 15.24 x 12.33 mm
Factory colour Black
Height 12.33mm
Insulation Material Thermoplastic material
Insulation Resistance
> 109Ω
Length 8.85mm
Max. temperature +105°C
Min. temperature -55°C
Misc Attribute 2 Straight
Nominal Current 3A
Nominal current (details) 3A
Nominal Voltage 250V AC
Nominal voltage (details) 250V AC
Pins 2 x 3 mm
Pins per row 3
Temperature Range -55 - +125°C
Total number of pins 6
Width 15.24mm
