W & P 947-13-006-00 Multi Pin Connector 2x3mm For 0.635mm Pins 3A

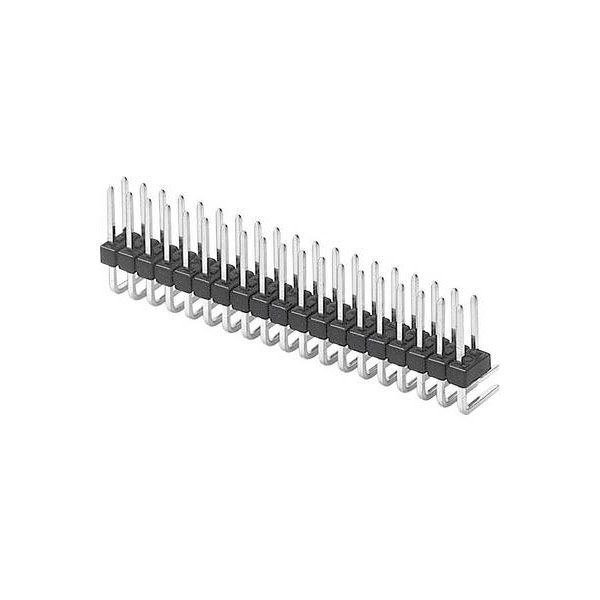

Image Representative of Range

W & P 947-13-006-00 Multi Pin Connector 2x3mm For 0.635mm Pins 3A

W & P Products
Order Code:

10-9656

Brand: W & P Products MPN: 947-13-006-00 EAN-13: 2050001141415
Qty Unit Price (Ex VAT)
20+ £0.219
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
115 in stock, despatched in 4 working days

W & P Products manufactures the 947-13-006-00 multi pin connector featuring a pin strip standard with dimensions of 2 x 3 mm. It supports a nominal current of 3 A, making it suitable for low to moderate current electrical applications. Typical uses include connectivity solutions in electronics, appliances, or other devices requiring reliable power and signal transmission.
Type Pin strip (standard)
Number of Rows 2
Case Material Thermoplastic material
Connection Print
Connector Type Pin strip, right angle
Contact Material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 11.24 x 8.30 x 7.62 mm
Factory colour Black
Height 7.62mm
Industrial packaging No
Insulation Resistance
> 109Ω
Length 11.24mm
Max. temperature +125°C
Min. temperature -40°C
Misc Attribute 2 Angled
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal Voltage 250V AC
Nominal voltage (details) 250V AC
Pin length (PCB) 3.30mm
Pin length (receptacle) 4.80mm
Pin shape Rectangular
Pins 2 x 3 mm
Pins per row 3
Separable No
Temperature Range -55 - +125°C
Total number of pins 6
Width 8.30mm
