W & P 943-13-040-00 Connector 1x40 Pins 3A For 0.635 mm Square Pins

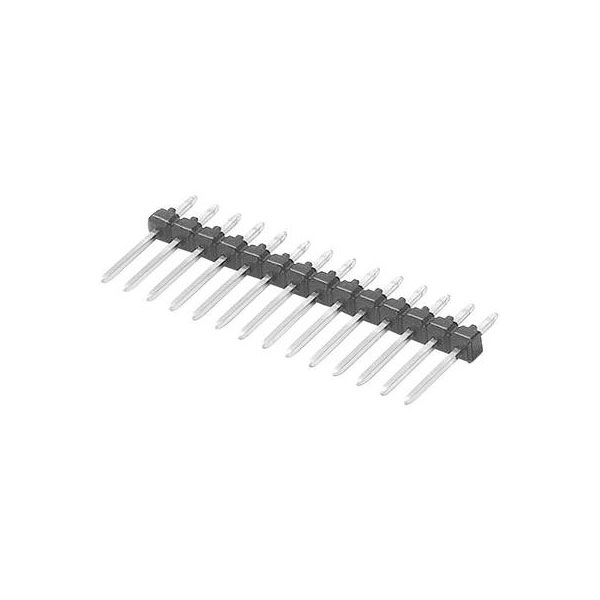

Image Representative of Range

W & P 943-13-040-00 Connector 1x40 Pins 3A For 0.635 mm Square Pins

W & P Products
Order Code:

10-9627

Brand: W & P Products MPN: 943-13-040-00 EAN-13: 2050001141033
Qty Unit Price (Ex VAT)
5+ £0.855
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
188 in stock, despatched in 4 working days

The W & P Products 943-13-040-00 is a multi-pin connector featuring a pin strip (standard) with 1 x 40 pins. It supports a nominal current of 3 A, making it suitable for moderate electrical applications. Typically, this connector is used in electronic circuits and hardware assemblies.
Type Pin strip (standard)
Number of Rows 1
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Pin strip, straight
Contact Material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 101.6 x 12.60 x 2.50 mm
Factory colour Black
Height 2.50mm
Industrial packaging No
Insulation Resistance
> 109Ω
Length 101.6mm
Max. temperature +125°C
Min. temperature -40°C
Misc Attribute 2 Straight
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal Voltage 250V AC
Nominal voltage (details) 250V AC
Pin length (PCB) 3.30mm
Pin length (receptacle) 6.80mm
Pin shape Rectangular
Pins 1 x 40
Pins per row 40
Separable No
Temperature Range -55 - +125°C
Total number of pins 40
Width 12.60mm
