W & P 141-50-10-60 Pin Connector 2.54mm 50 Pins 2 Rows 1 piece

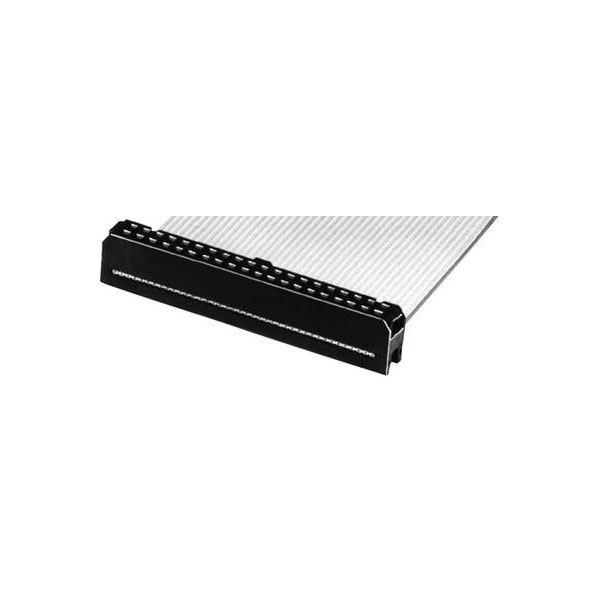

Image Representative of Range

W & P 141-50-10-60 Pin Connector 2.54mm 50 Pins 2 Rows 1 piece

W & P Products
Order Code:

10-9544

Brand: W & P Products MPN: 141-50-10-60 EAN-13: 2050001143266
Qty Unit Price (Ex VAT)
5+ £0.895
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 8 days

The W & P Products pin connector, model 141-50-10-60, features a contact spacing of 2.54 mm and accommodates 50 pins across two rows. Manufactured by W & P Products, this connector is typically used in electronic assemblies requiring reliable connections. Its compact design makes it ideal for circuit boards in computers and other electronic devices.
Type Pin connector
Number of Rows 2
Board contact surface Gold plated
Case Material Thermoplastic material
Connection Cut & Clip
Connector contact surface Gold plated
Connector Type Power strip
Contact Material Copper alloy
CS 2.54mm
Dim (L x W x H) 6 x 68.1 x 13.55 mm
Factory colour Black
Height 13.55mm
Insulation Material Thermoplastic material
Insulation Resistance
> 109Ω
Length 6mm
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute 2 Straight
Nominal Current 1A
Nominal current (details) 3A
Nominal Voltage 250V AC
Pins 2 x 25
Pins per row 25
Temperature Range -40 - +105°C
Total number of pins 50
Width 68.1mm
