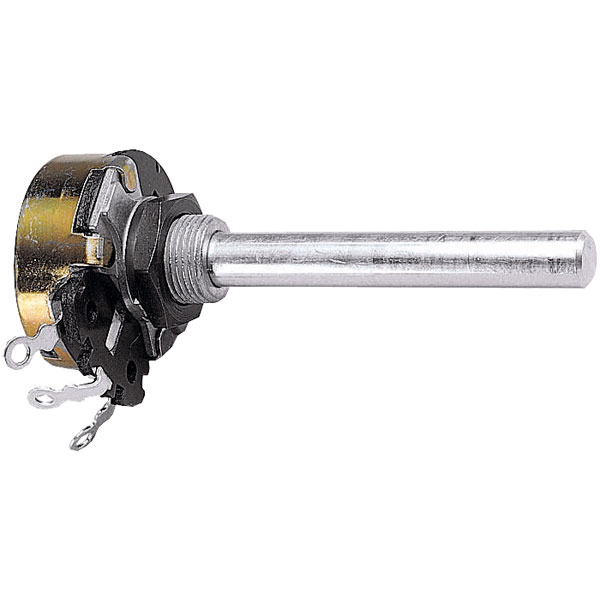

TT Electronics AW 10K 10K Wirewound potentiometer 4W AW series

A 10K 4W wirewound potentiometer. The encased pot has a nominal width of 24 mm.

• Solder tag terminals
• Angle of rotation (electrical) 280° (±5°)
• Metal axle diameter 6mm
• Electrical load capacity 4W
• Nominal resistances 10Ω to 25kΩ
• Resistance tolerance ±10%
• Linearity ±2%
• Continuous voltage 500V
• Electrical adjustment range 280° (±5°)
• Case diameter 24mm
• Spindle length 42mm
• Spindle diameter 6mm
• Thread size M10 x 0.75
• Test voltage 1kV/AC
