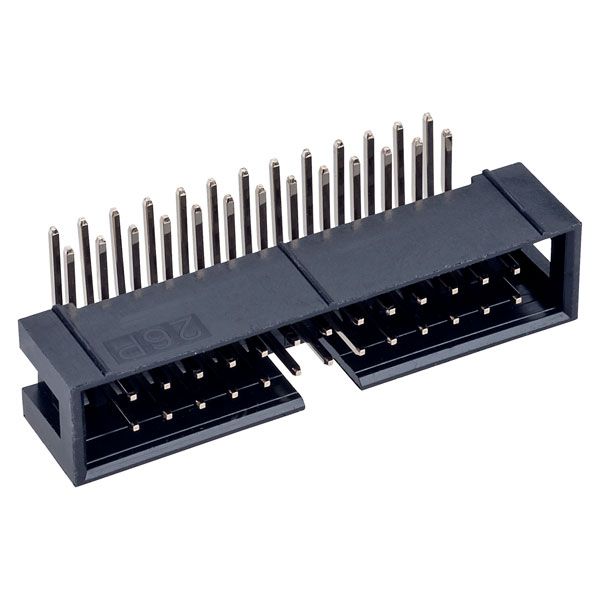

TruConnect 26 Way IDC Right Angled Boxed Header 2.54mm Pitch

TruConnect
MPN
19-0045
Brand
TruConnect
Order Code
19-0045
Country of Origin
China

  • Quickly find another product in this range by Number of Ways:

View Full Product Range (7)
Qty Unit Price (Ex VAT)
5+ £0.404
100+ £0.280
500+ £0.231
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 5
Despatched same day - 317 in stockAdditional quantity lead time 5 months

These box headers are a dual row shrouded header for use with dual row IDC female socket connectors. The low profile, space saving design has a centre slot for the socket's polarization bump. The headers are available in right angle PCB mount and straight PCB mount (order code 19-0033).


  • Provides a quick and simple interconnection system
  • Gold-plated brass contacts
  • Designed for use with ribbon cable
  • Available in 10, 14, 16, 20, 26, 34, 40, and 50-way options
  • UL Approved.
Pitch 2.54mm
Number of Rows 2
Mounting Type PCB
Number of Ways 26

To use this facility please Sign In.

Sign In

Questions

*Question functionality currently disabled
Question by: Product code: 19-0045

Q. hi, do you know the diameter of the pins are? Thanks

A. Hi SJ. Thank you for your question. The holes for the PCB are 1.02mm we would say they are approx 1.00mm max.
