TruComponents 783075 Auxiliary Switch, Panel Mount, 3 CO, Screw

TruComponents
Order Code:

78-3075

Brand: TruComponents MPN: 783075 EAN-13: 4064161311067
Qty Unit Price (Ex VAT)
1+ £13.75
5+ £13.13
10+ £12.56
25+ £12.29
50+ £12.04
100+ £11.79
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
177 available to back orderBack-order availability date - 12/01/2026

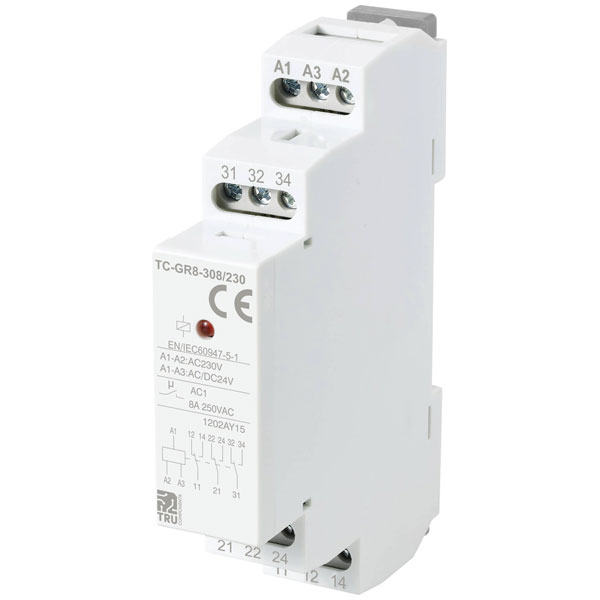

The TruComponents TC-GR8-308/230, 783075 is an auxiliary switch designed for panel mount applications. It features a 3 change-over configuration and operates at multiple voltages, including 24 V AC, 24 V DC, and 230 V AC, with a current rating of 8 A. This robust switch is ideal for use in electrical contactors and control panels, ensuring reliable performance and versatility in various industrial and commercial environments.
Type Auxiliary Switch
Mounting Style DIN rail
Contact Type 3 change-overs
Current load 8A
Depth 64mm
Dimensions (W x H x D) 90 x 18 x 64 mm
Height 18mm
Max. temperature 55°C
Min. temperature -20°C
Misc Attribute TC-GR8-308/230
Plastic free packaging Plastic-free packaging
Width 90mm
