TruComponents 783056 Toggle Switch Panel 1xOn/Off/On Non-illum. Pin

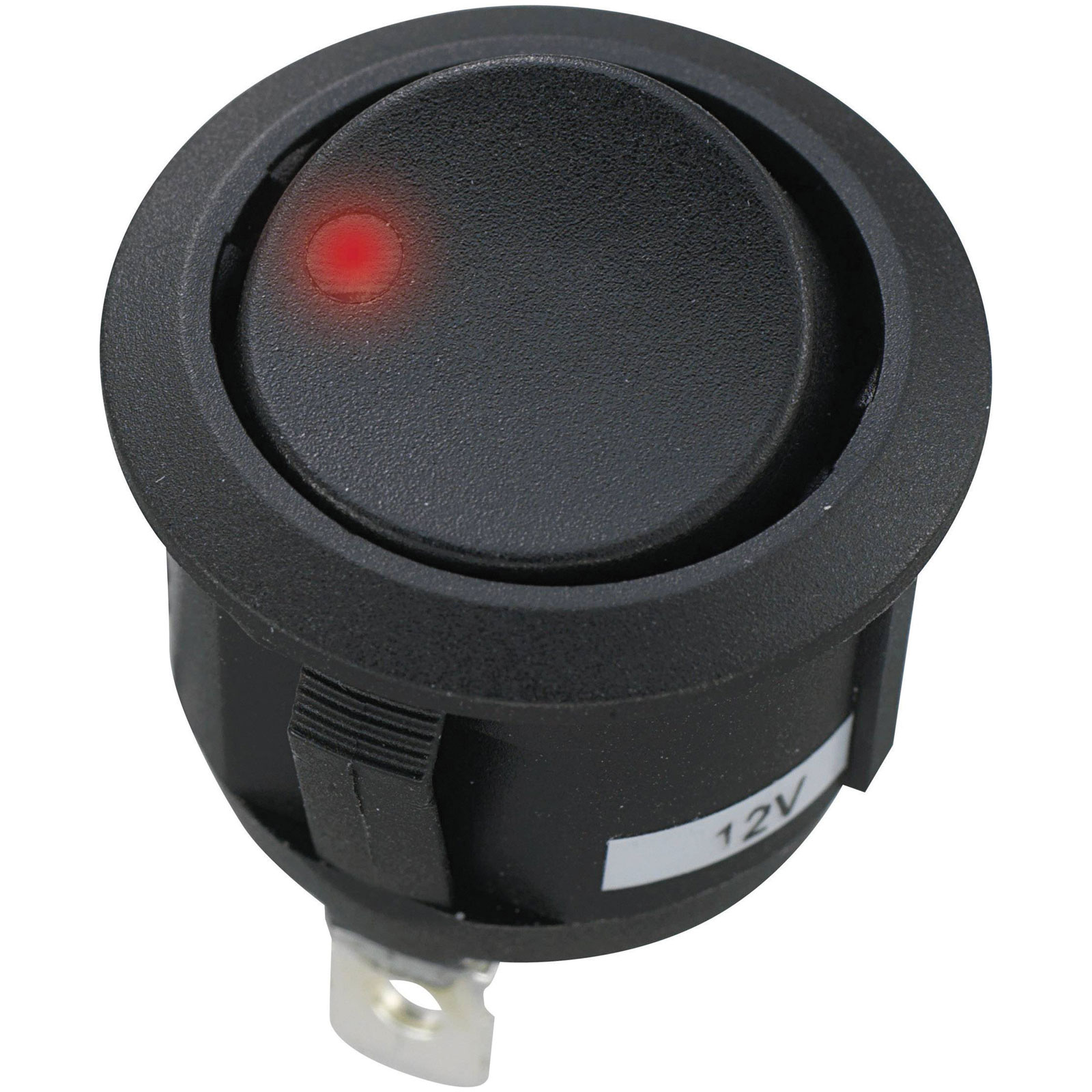

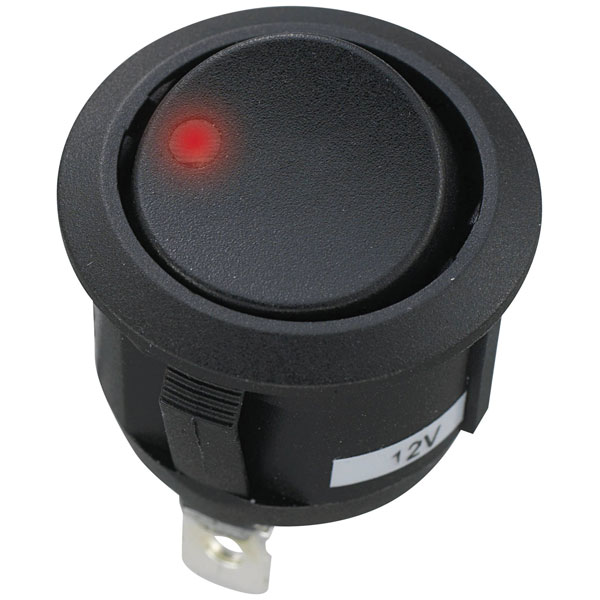

The TruComponents TC-R13-112DL-02 is a versatile, panel mount, round switch with On/Off/On configuration. This illuminated switch, featuring both red and yellow LEDs, has a 12 V DC rating and 20 A capacity. It is designed in a compact 23x28.2mm size and is ideal for automotive and electrical applications where reliable manual control is needed. Built with high-quality materials, it ensures durability and efficiency for various toggle switch requirements.

Mounting Type	Panel mount
Contact Configuration	SPDT
Switch Function	On-Off-On
Current Rating (Amps)	20A
Actuator Marking	None
Illumination Type	LED (monochrome)
Illumination Colour	None
(Ø)	23mm
Colour	Red , Yellow
Connection	Type C CEE 7/16 plug 4.8mm
Dim	(Ø x H) 23 mm x 28.2 mm
Factory colour	Black
Front panel thickness	0.7 - 3mm
Height	28.2mm
Maximum Temperature	+85°C
Min. temperature	-20°C
Misc Attribute	TC-R13-112DL-02
Number of pins	1
Number of Poles	1
Print motif	None
Recess Diameter	20.2mm
Switch position	1 x On/Off/On
Type	Toggle Switch
Voltage Rating	12V DC
