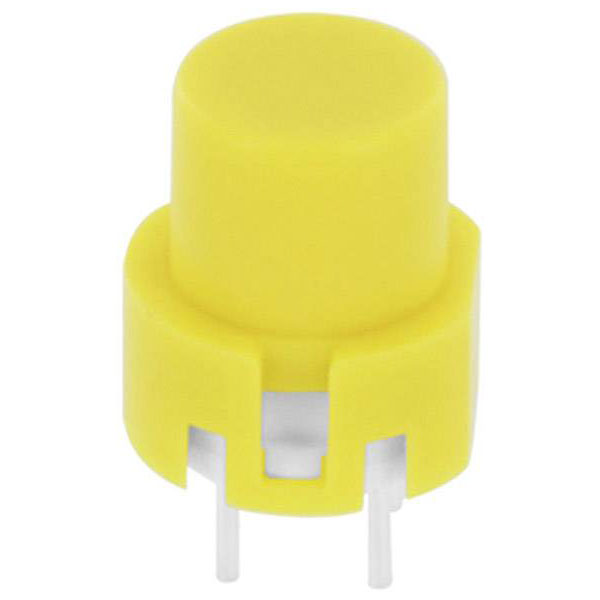

TruComponents 782739 Keyboard ,PCB Mount,Off/(On),D6,Yellow

TruComponents' TC-D6GE is a PCB mount, momentary pushbutton switch with an off/(on) configuration. It has a voltage rating of 35 V DC and a current rating of 0.01 A, and features a yellow button for clear visibility. Typically used in electronic projects, it acts as an impulse relay for low-power switching applications.

Type	Pushbutton
Contact Configuration	SPNO
Switch Function	1 maker
Current Rating	100mA
Mounting	PCB
Illumination	Non-Illuminated
Panel Cutout Dimensions	N/A
Actuating Force	1.3N
Button Diameter	9mm
Casing/button Colour	Yellow
Connection	Solder pins
Durability	100000
Insulation Resistance	100 GΩ
Key Type	Input button
Lighting Type	None
Maximum Temperature	60°C
Min. temperature	-10°C
Misc Attribute	TC-D6GE
Recess Diameter	11.4mm
Resistance	100mΩ
Switching Voltage	35V DC
