TruComponents 782713 Pushbutton ,Panel Mount,Off/(On),NO/NC,Solder,IP65

TruComponents
Order Code:

78-2713

Brand: TruComponents MPN: 782713 EAN-13: 4064161171326
Qty Unit Price (Ex VAT)
1+ £7.52
5+ £7.34
10+ £7.17
25+ £7.00
50+ £6.85
100+ £6.70
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
265 available to back orderBack-order availability date - 09/01/2026

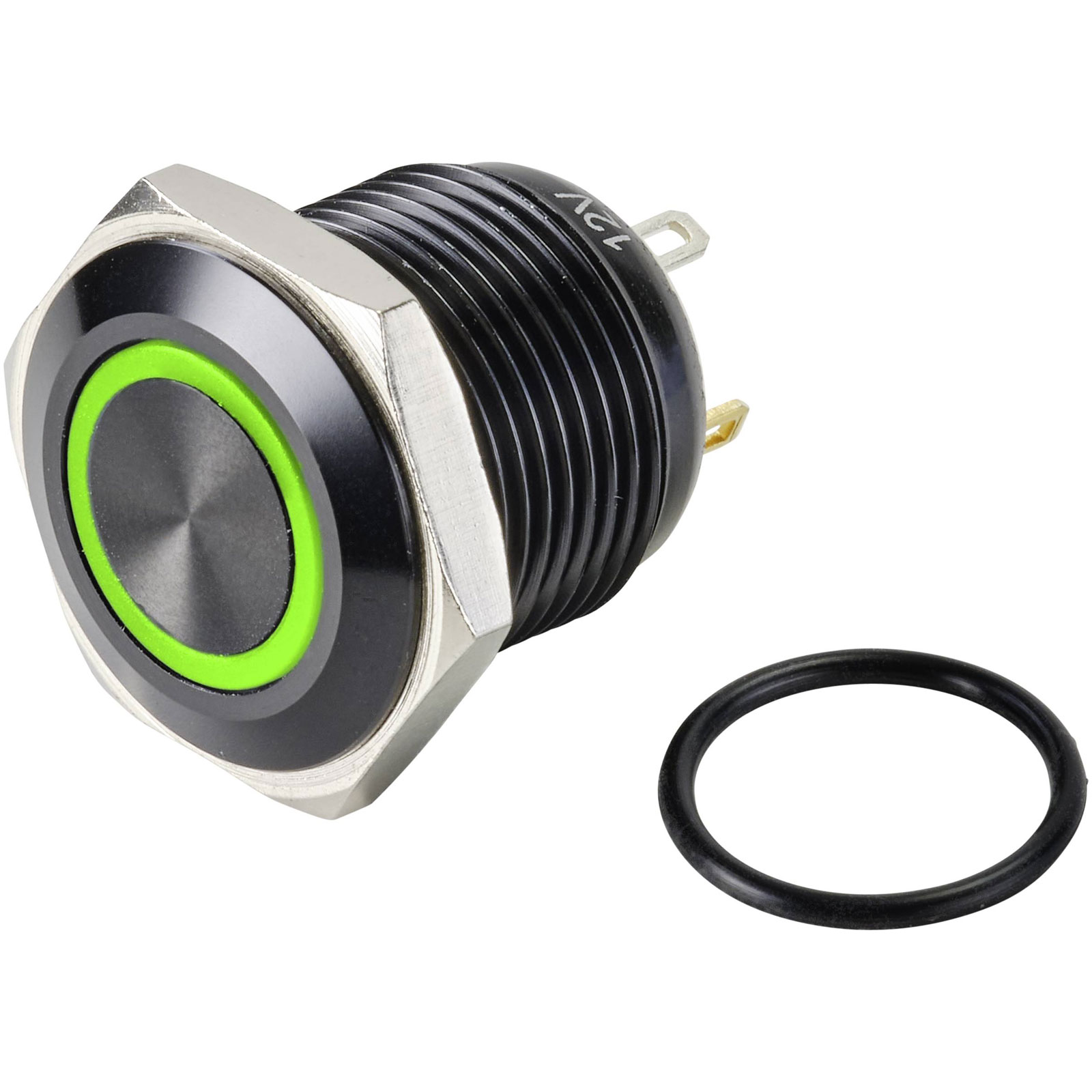

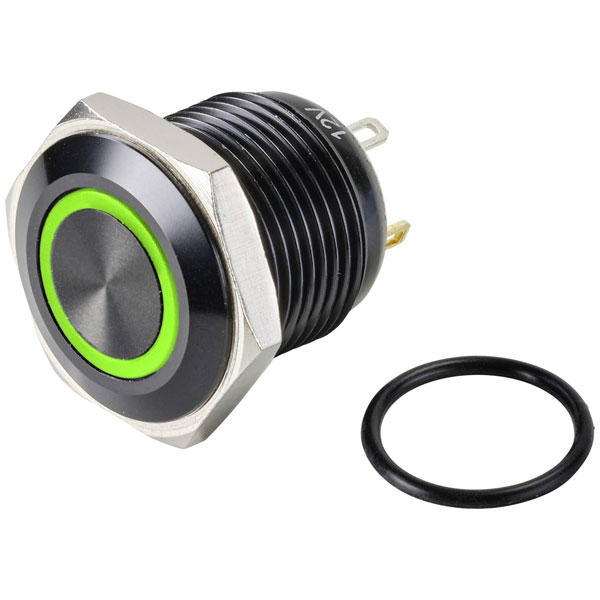

The TruComponents pushbutton, model TC-9428168, is a panel mount switch designed for off/(on) momentary action with a green illumination. It supports up to 48 V DC and 2 A, featuring a NO/NC configuration with solder terminals and a robust IP65 rating. This switch is ideal for applications requiring reliable actuation and visibility in harsh environments.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function 1 maker
Current Rating 2A
Board thickness (max.) 6mm
Bulb Type LED (monochrome)
Button diameter 11.8mm
Colour Green
Contact Material Silver alloy
Durability 1000000
Electrical lifespan 50000
IP Rating IP65
Lighting type Circular lighting
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute GQ16F-10E/J/G/12V/A
Recess depth 20mm
Recess diameter 16mm
Switching Voltage 48V DC
