TruComponents 782710 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP67

TruComponents
Standard range
Order Code:

78-2710

Brand: TruComponents MPN: 782710 EAN-13: 4064161171296
Qty Unit Price (Ex VAT)
1+ £7.69
5+ £7.50
10+ £7.33
25+ £7.16
50+ £7.00
100+ £6.85
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
126 in stock, despatched in 4 working days

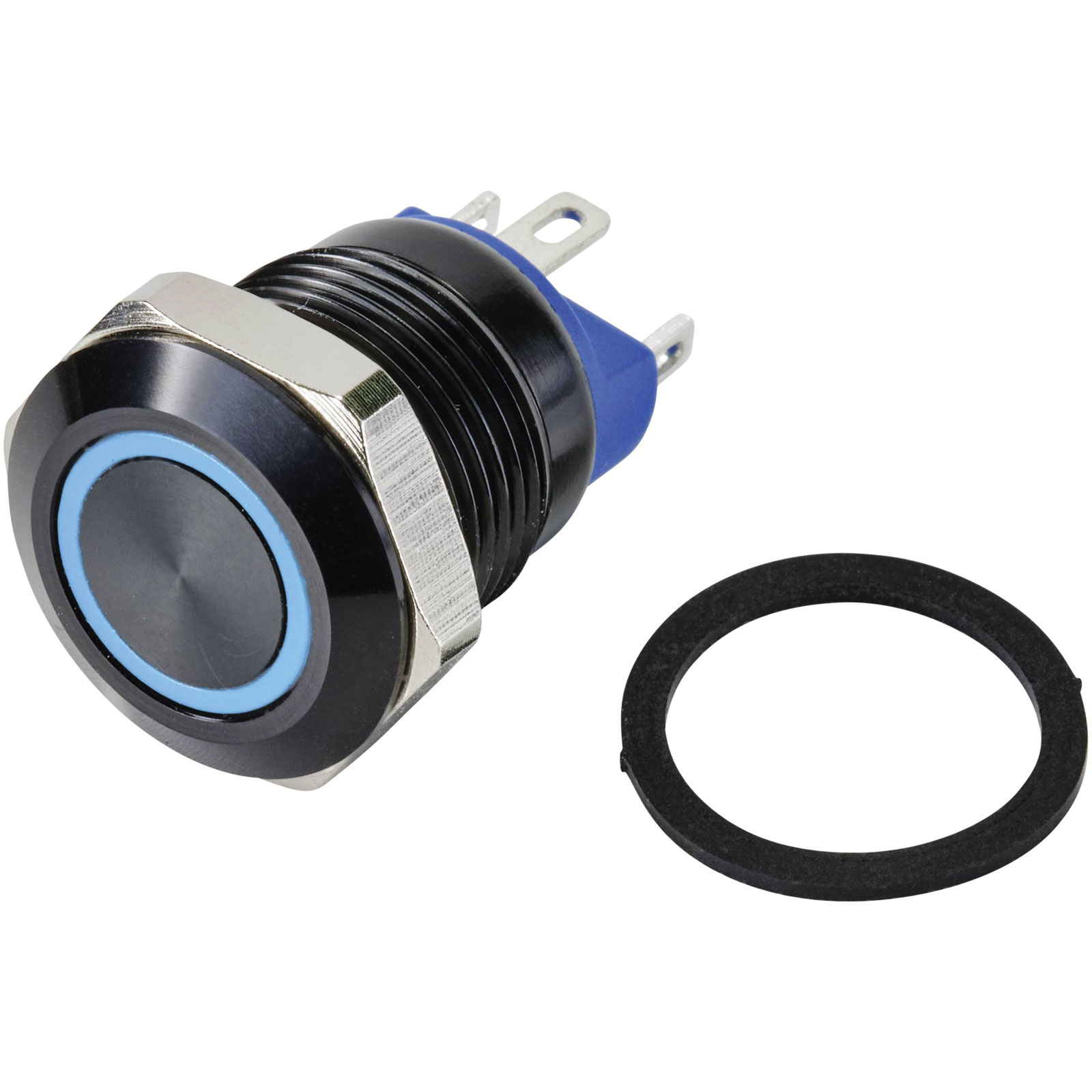

The TruComponents TC-9428156 is a panel mount pushbutton switch, designed with a single pole single throw (SPST) configuration for momentary off/(on) operation. It features a 48 V DC voltage rating, a 2 A current rating, and an IP67 front for durability in harsh environments. Typical applications include industrial control panels and equipment requiring reliable pushbutton switching with blue illumination for visibility.
Type Pushbutton
Board thickness (max.) 6mm
Bulb type LED (monochrome)
Button diameter 9mm
Colour Blue
Contact material Silver alloy
Contact type 1 maker
Durability 500000
Electrical lifespan 200000
Functions momentary
IP rating IP67 (front)
Lighting type Circular lighting
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute GQ12-AF-10E/J/B/12V/A
Recess depth 19mm
Recess diameter 12mm
RoHS-compliant Yes
Switch position 1 x Off/(On)
Switching current (max.) 2A
Switching voltage 48V DC
