TruComponents 782693 Pushbutton ,Panel Mount,Off/(On),NO/NC,Solder,IP40

TruComponents
Order Code:

78-2693

Brand: TruComponents MPN: 782693 EAN-13: 4064161171067
Qty Unit Price (Ex VAT)
2+ £3.49
5+ £3.41
10+ £3.33
25+ £3.25
50+ £3.18
100+ £3.11
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
206 in stock, despatched in 4 working days

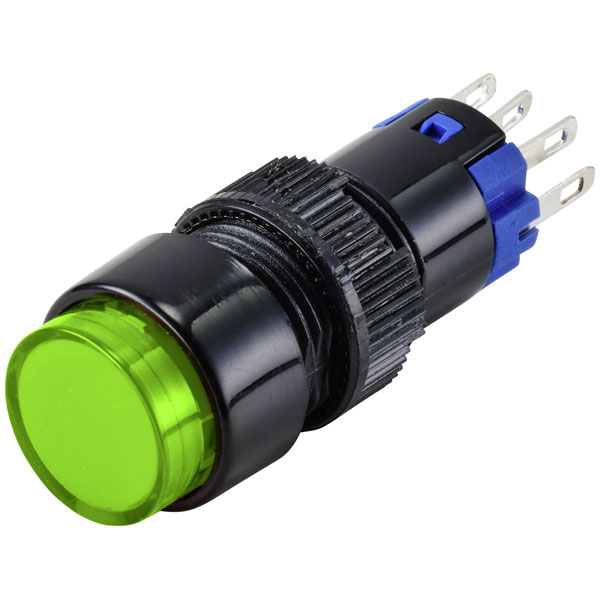

The TruComponents TC-9428064 is a panel mount pushbutton switch with a momentary Off/(On) action, suitable for low-voltage applications. It features a green illuminated button, with a voltage rating of 250 V and a current rating of 3 A. Commonly used in control panels, this switch supports both normally open (NO) and normally closed (NC) configurations, offering reliable performance in various settings.
Type Pushbutton
Board thickness (max.) 8mm
Bulb Type LED (monochrome)
Button diameter 12mm
Colour Green
Contact Material Silver alloy
Durability 200000
Electrical lifespan 50000
Functions momentary
IP Rating IP40
Lighting type Area illumination
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS2Y-11/G/12V
Recess depth 28mm
Recess diameter 12mm
Switch position 1 x Off/(On)
Switching current (max.) 3A
Switching Voltage 250V
