TruComponents 782656 Pushbutton ,Panel Mount,Off/On,NO/NC,Solder,IP65

TruComponents
Order Code:

78-2656

Brand: TruComponents MPN: 782656 EAN-13: 4064161301181
Qty Unit Price (Ex VAT)
1+ £8.79
5+ £8.58
10+ £8.38
25+ £8.19
50+ £8.00
100+ £7.83
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
106 available to back orderBack-order availability date - 14/01/2026

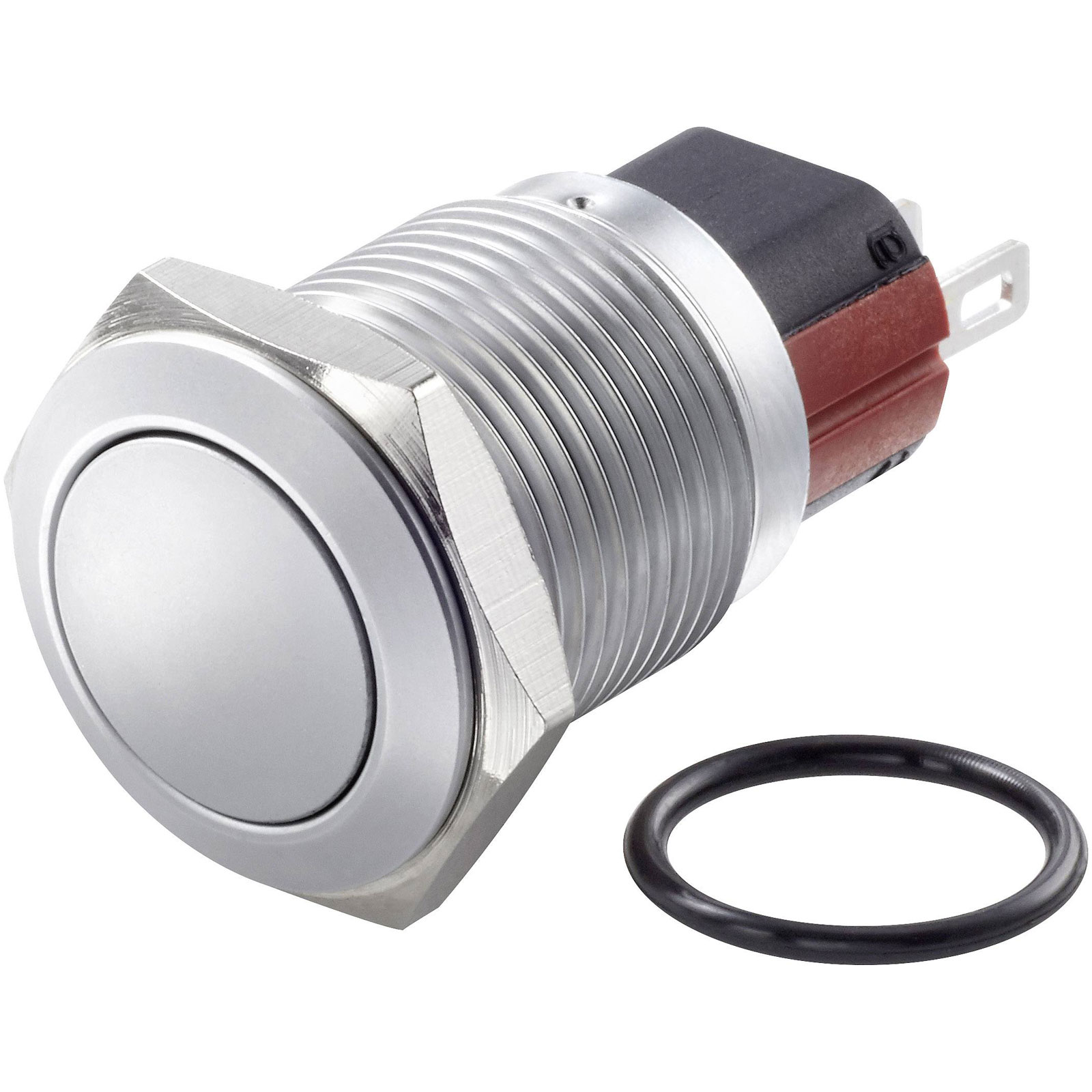

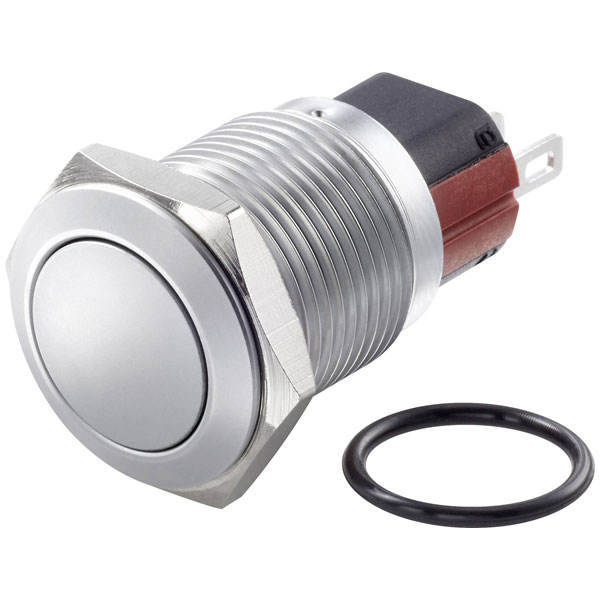

TruComponents offers a tamper-proof pushbutton switch, model TC-7494708, suitable for panel mount applications. This off/on switch features a NO/NC configuration with solder connections and has an IP65 rating for dust and water resistance. It is ideal for environments requiring robust control interfaces, such as industrial machinery or public access systems.
Type Pushbutton
Switch Function latch
Current Rating 3A
Button Ø 23.6mm
Connection Solder tag
Contact Material Silver alloy
Durability 200000 cycles
Factory colour Red
Front panel thickness 0.5 - 6mm
IP Rating IP40
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute TC-LAS1-AY-11TS
Print motif Arrow symbol
Recess diameter 16mm
Switching Voltage 250V AC
Unlocking mechanism Turn
