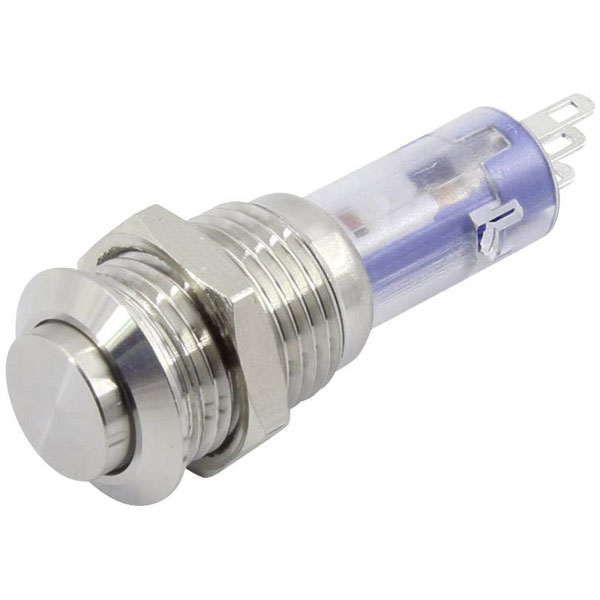

TruComponents 782633 Pushbutton ,Panel Mount,Off/(On),NO/NC,Solder

TruComponents' pushbutton switch, model TC-6647600 LAS4GQH-11/S, features an Off/(On) momentary action with NO/NC contacts. It is designed for panel mounting, handling up to 48 V DC and 0.50 A, suitable for various low-power control applications. This pushbutton is ideal for use in electronic projects requiring dependable and tactile switch operation.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Switch Function	Off-(On)
Current Rating	500mA
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	12
Cable Length	30.00cm
Connection	Open end cable
IP Rating	IP64
Material	Polypropylene
Maximum Temperature	+80°C
Min. temperature	-20°C
Misc Attribute	FS-3101
Power	10W
Switching Voltage	200V AC
Thread Size	M8
