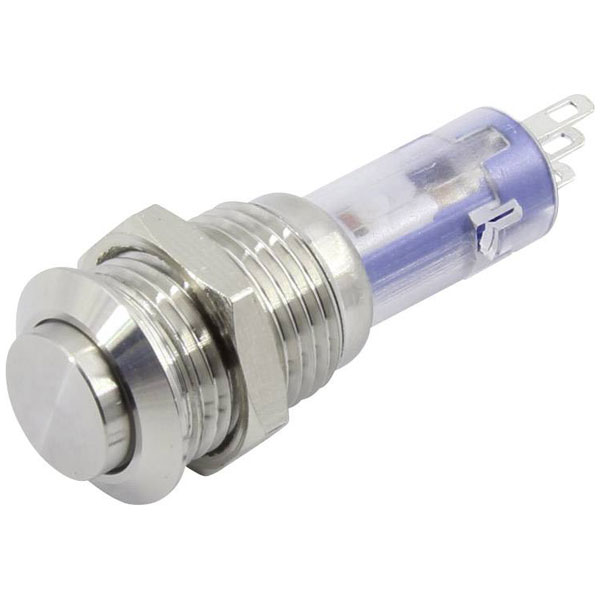

TruComponents 782631 Pushbutton ,Panel Mount,Off/On,SPDT,Solder

The TruComponents TC-6647584 is a panel mount pushbutton switch designed for off/on operation with a single-pole double-throw (SPDT) configuration. It features a voltage rating of 48 V and a current rating of 2 A, making it suitable for low-power applications. Common uses include control panels and machinery operation, where reliable switch performance is essential.

Type	Pushbutton
Contact Configuration	1 x On/On
Switch Function	On/Off
Current Rating	50mA
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	12
Connection	Print
CS	2.5mm
Dim	(L x W x H) 7 x 3 x 3 mm
Height	3mm
Length	7mm
Maximum Temperature	+55°C
Min. temperature	-20°C
Misc Attribute	SSK-1202
Operation type	top
Switch postions	2
Switching Voltage	12V DC
Width	3mm
