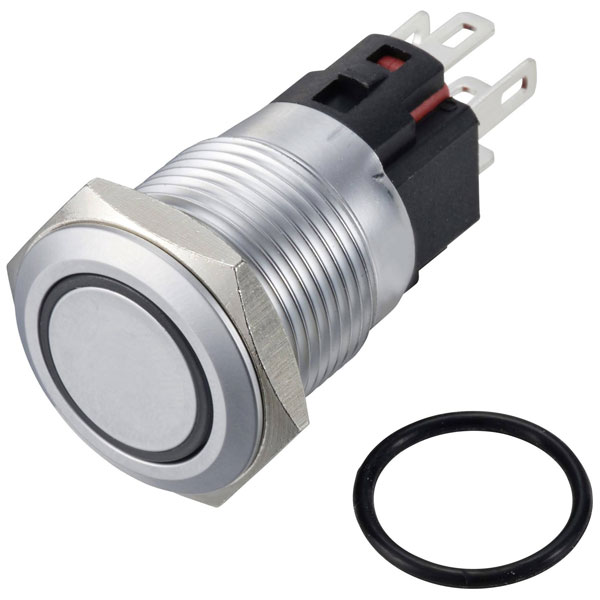

TruComponents 782610 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65

The TruComponents TC-12647512 pushbutton is a panel mount, SPST momentary switch designed for applications requiring an IP65 rating. It operates at 250 V AC with a current rating of 3 A and features a durable chrome-plated brass construction. This pushbutton is suitable for use in environments demanding reliability and protection against dust and low-pressure water jets.

Type	Pushbutton
Contact Configuration	1 x Off/On
Switch Function	1 maker
Current Rating	10A
Mounting	Panel
Panel Cutout Dimensions	12
Casing/button Colour	Metal
Colour	Green
Connection	Screws
Dielectric Strength	1000 V/AC/60 s
Front panel thickness	19mm
IP Rating	IP65
Key removal position	Off/On
Material	Metal
Maximum Temperature	55°C
Min. temperature	-25°C
Misc Attribute	TC-K3-16A2-06
Recess Diameter	19.2mm
Switch postions	2
Switching angle	1 x 90 °
