TruComponents 782151 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP67

TruComponents
Order Code:

78-2151

Brand: TruComponents MPN: 782151 EAN-13: 4064161206288
Qty Unit Price (Ex VAT)
1+ £4.63
5+ £4.52
10+ £4.42
25+ £4.32
50+ £4.22
100+ £4.13
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
176 in stock, despatched in 4 working days

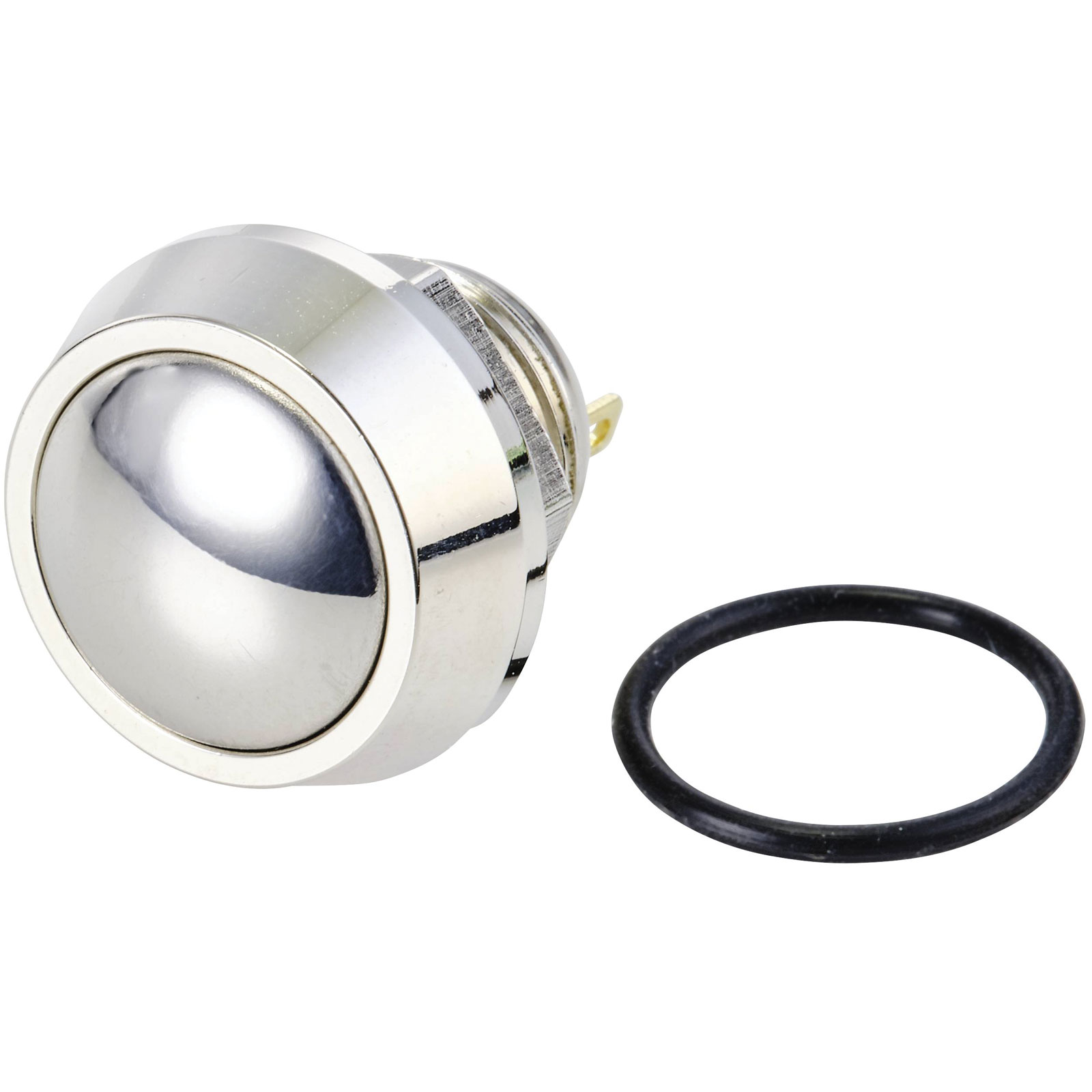

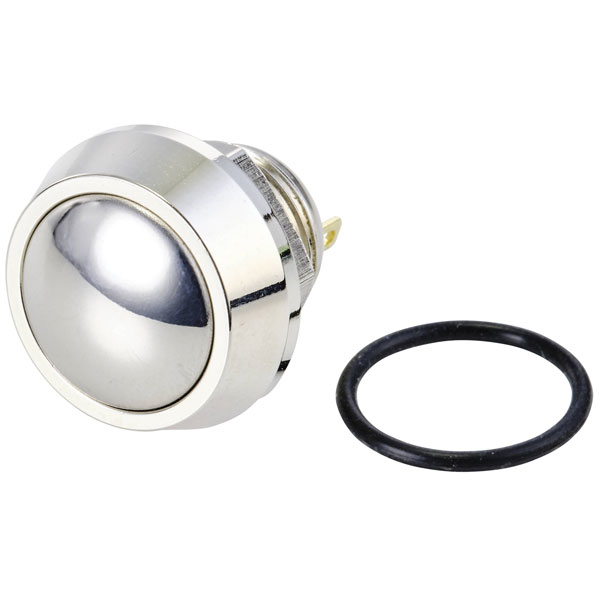

TruComponents' TC-10090992 is a panel mount pushbutton switch designed for Off/(On) momentary action. It features a voltage rating of 48 V DC and a current capacity of 2 A with a single pole single throw (SPST) configuration and an IP67 rating for water and dust resistance. This pushbutton is suitable for various applications, including industrial control panels and equipment that require robust and reliable switch operation.
Type Pushbutton
Board thickness (max.) 4mm
Casing/button colour Brass
Connection Soldering
Contact Material Silver alloy
Contact Resistance ≤ 50 mΩ
Contact Type 1 maker
Dielectric Strength 1500 VAC
Electrical lifespan 200000
Functions momentary
Insulation Resistance ≥ 100 MΩ
IP Rating IP65
Material Brass
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute GQ12B-10/J/N
Plastic free packaging Plastic-free packaging
Recess depth 12.5mm
Recess diameter 13mm
Switch position 1 x Off/(On)
Switching current (max.) 2A
Switching Voltage 48V DC
